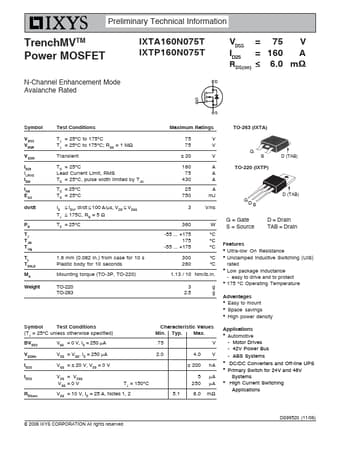

IXTP160N075T
Features
Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance
- easy to drive and to protect 175 °C Operating Temperature
Advantages Easy to mount Space savings High power density
Applications Automotive
- Motor Drives
- 42V Power Bus
- ABS Systems DC/DC Converters and Off-line UPS Primary Switch for 24V and 48V Systems High Current Switching Applications
© 2006 IXYS CORPORATION All rights reserved
DS99520 (11/06)
IXTA160N075T IXTP160N075T
Symbol
Test Conditions
(TJ = 25°C unless otherwise specified) gfs VDS= 10 V; ID = 60 A, Note 1
Ciss Coss Crss
VGS = 0 V, VDS = 25 V, f = 1 MHz td(on) Resistive Switching Times tr VGS = 10 V, VDS = 0.5 VDSS, ID = 25 A td(off) RG = 5 Ω (External) tf
Qg(on) Qgs Qgd
VGS= 10 V, VDS = 0.5 VDSS, ID = 25 A
Rth JC Rth CH
TO-220
Source-Drain Diode
Symbol
Test Conditions
TJ = 25°C unless otherwise specified)
IS VGS = 0 V
ISM Pulse width limited by TJM
VSD IF = 25 A, VGS = 0 V, Note 1 trr IF = 25 A, -di/dt...
