TLE8250GVIO - High Speed CAN-Transceiver

General Description

The TLE8250GVIO is a transceiver designed for CAN networks in automotive and industrial applications.

Key Features

  • Fully compatible to ISO 11898-2.
  • Wide common mode range for electromagnetic immunity (EMI).
  • Very low electromagnetic emission (EME).
  • Excellent ESD robustness.
  • Extended supply range at VCC and VIO.
  • Suitable for 5V and 3.3V microcontroller I/O voltages.
  • CAN Short-Circuit proof to ground, battery and VCC.
  • TxD time-out function.
  • Low CAN bus leakage current in Power Down mode.
  • Over temperature protection.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TLE82452-3SA 2 Channel High-Side and Low-Side Linear Solenoid Driver Infineon
TLE82453-3SA 3-Channel High-Side and Low-Side Linear Solenoid Driver Infineon
TLE8080EM Engine Management IC Infineon
TLE8082ES Small engine management IC Infineon
TLE8088EM Engine management IC Infineon

Other Datasheets by Infineon

Part Number Description
TLE8250G High Speed CAN-Transceiver
TLE8201R Door Module Power
TLE8203E Mirror Power
TLE8209-2 SPI Programmable H-Bridge
TLE8209-2SA SPI Programmable H-Bridge

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

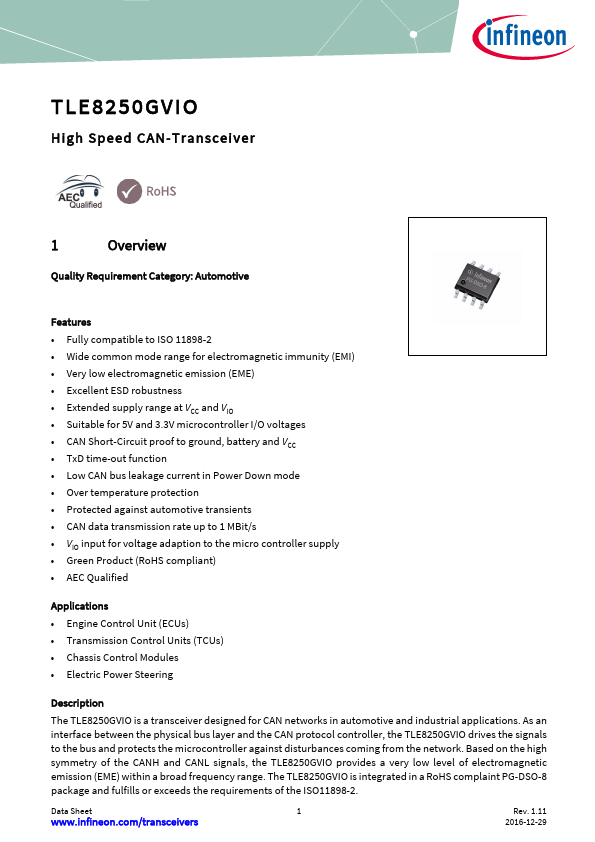

TLE8250GVIO High Speed CAN-Transceiver 1 Overview Quality Requirement Category: Automotive Features • Fully compatible to ISO 11898-2 • Wide common mode range for electromagnetic immunity (EMI) • Very low electromagnetic emission (EME) • Excellent ESD robustness • Extended supply range at VCC and VIO • Suitable for 5V and 3.
