BTS550P, Smart Highside High Current Power Switch

N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load  current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protective functions. 3 & Tab Voltage source Overvoltage protection Current limit Gate protection OUT R bb.

BTS550P_InfineonTechnologiesAG.pdf

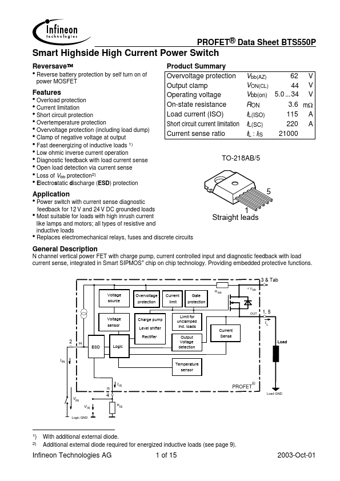

BTS550P Datasheet Preview — Preview of BTS550P PDF

Datasheet Details

Part number:

BTS550P

Manufacturer:

Infineon ↗ Technologies AG

File Size:

279.12 KB

Description:

Smart Highside High Current Power Switch

BTS550P Features

* Product Summary Overvoltage protection Output clamp Operating voltage On-state resistance Load current (ISO) Short circuit current limitation Current sense ratio Vbb(AZ) 62 VON(CL) 44 Vbb(on) 5.0 34 RON IL(ISO) IL(SC) IL : IIS V V V 3.6 mΩ 115 A 220 A 21000 TO-218AB/5

* Power switch w
