IZ7010 CIRCUIT FOR ELECTRON PEDOMETER - ERGOMETER

Integral

IZ7010 Description

IZ7010 CIRCUIT FOR ELECTRON PEDOMETER - ERGOMETER .
The chip is a silicon-gate CMOS LSIs for electron pedometer-ergometer with function watch and alarm.

IZ7010 Features

* FUNCTIONS
* One-chip CMOS constructions
* Single 1.5V battery operation
* Imbed in chip element of quartz generator with operating frequency of 32768 Hz, capacity, resistor, and voltage doubler
* Built-in LCD driver for control of 7-digit LCD in the mode of two level multiplexing w

📥 Download Datasheet

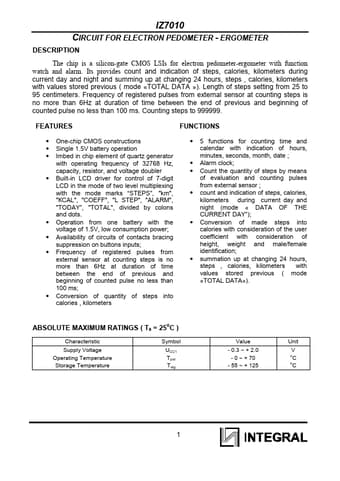

IZ7010 Datasheet Preview — Preview of IZ7010 PDF

Datasheet Details

Part number: IZ7010
Manufacturer: Integral
File Size: 500.64 KB
Datasheet: IZ7010-Integral.pdf
Description: CIRCUIT FOR ELECTRON PEDOMETER - ERGOMETER
