SCHOTTKY RECTIFIER

No Preview Available !

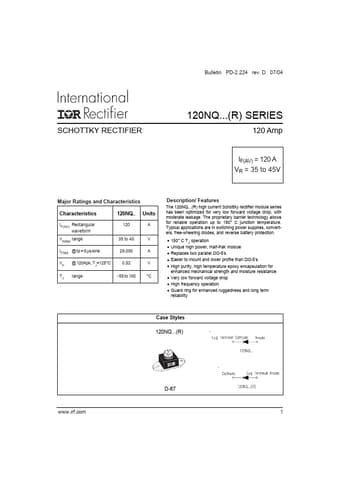

Bulletin PD-2.224 rev. D 07/04
SCHOTTKY RECTIFIER
120NQ...(R) SERIES
120 Amp
IF(AV) = 120 A
VR = 35 to 45V
Major Ratings and Characteristics
Characteristics
120NQ.. Units
IF(AV) Rectangular
waveform
VRRM range
IFSM @ tp = 5 µs sine
VF @120Apk, TJ=125°C
120
35 to 45
29,000
0.52
A
V
A
V
TJ range
- 55 to 150
°C
Description/ Features
The 120NQ...(R) high current Schottky rectifier module series
has been optimized for very low forward voltage drop, with
moderate leakage. The proprietary barrier technology allows
for reliable operation up to 150° C junction temperature.
Typical applications are in switching power supplies, convert-
ers, free-wheeling diodes, and reverse battery protection.
150° C TJ operation
Unique high power, Half-Pak module
Replaces two parallel DO-5's
Easier to mount and lower profile than DO-5's
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Very low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Case Styles
120NQ...(R)
www.irf.com
D-67
1


International Rectifier Electronic Components Datasheet

120NQ045 Datasheet

SCHOTTKY RECTIFIER

No Preview Available !

120NQ...(R) Series
Bulletin PD-2.224 rev. D 07/04
Voltage Ratings
Part number
VR Max. DC Reverse Voltage (V)
VRWM Max. Working Peak Reverse Voltage (V)
Absolute Maximum Ratings
120NQ035(R)
35
120NQ040(R)
40
120NQ045(R)
45
Parameters
120NQ Units
Conditions
IF(AV) Max. Average Forward Current
* See Fig. 5
120
IFSM Max. Peak One Cycle Non-Repetitive 29,000
Surge Current * See Fig. 7
1550
EAS Non-Repetitive Avalanche Energy
IAR Repetitive Avalanche Current
81
12
Electrical Specifications
A 50% duty cycle @ TC = 106° C, rectangular wave form
5µs Sine or 3µs Rect. pulse
A
Following any rated
load condition and
10ms Sine or 6ms Rect. pulse with rated VRRM applied
mJ TJ = 25 °C, IAS= 12 Amps, L = 1.12 mH
A Current decaying linearly to zero in 1 µsec
Frequency limited by TJ max. VA = 1.5 x VR typical
Parameters
120NQ Units
Conditions
VFM Max. Forward Voltage Drop
* See Fig. 1
(1)
0.57
0.73
0.52
0.69
IRM Max. Reverse Leakage Current (1)
* See Fig. 2
10
500
VF(TO) Threshold Voltage
0.32
rt Forward Slope Resistance
1.37
CT Max. Junction Capacitance
5200
LS Typical Series Inductance
7.0
dv/dt Max. Voltage Rate of Change
10000
(Rated VR)
Thermal-Mechanical Specifications
V
V
V
V
mA
mA
V
m
pF
nH
V/ µs
@ 120A
@ 240A
@ 120A
@ 240A
TJ = 25 °C
TJ = 125 °C
TJ = TJ max.
TJ = 25 °C
TJ = 125 °C
VR = rated VR
VR = 5VDC, (test signal range 100Khz to 1Mhz) 25 °C
From top of terminal hole to mounting plane
(1) Pulse Width < 300µs, Duty Cycle < 2%
Parameters
120NQ Units
Conditions
TJ Max. Junction Temperature Range
Tstg Max. Storage Temperature Range
RthJC Max. Thermal Resistance Junction
to Case
-55 to 150 °C
-55 to 150 °C
0.40 °C/W DC operation * See Fig. 4
RthCS Typical Thermal Resistance, Case to 0.15 °C/W Mounting surface , smooth and greased
Heatsink
wt Approximate Weight
25.6 (0.9) g (oz.)
T Mounting Torque
Terminal Torque
Min.
Max.
Min.
17 (15)
29 (25)
23 (20)
Non-lubricated threads
Kg-cm
(Ibf-in)
Max.
46 (40)
Case Style
HALF PAK Module
