16FR120 - STANDARD RECOVERY DIODES

Download the 16FR120 datasheet PDF. This datasheet also covers the 16F variant, as both devices belong to the same standard recovery diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • High surge current capability Avalanche types available Stud cathode and stud anode version Wide current range Types up to 1200V VRRM Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (16F_InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
16F020 Fast Recovery Epitaxial Diodes Jingdao
16F020C Fast Recovery Epitaxial Diodes Jingdao Electronic
16F120 DIODE DSI
16F1788 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers Microchip
16F1823 PIC16F1823 Microchip

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
16FR10 STANDARD RECOVERY DIODES
16FR100 STANDARD RECOVERY DIODES
16FR20 STANDARD RECOVERY DIODES
16FR40 STANDARD RECOVERY DIODES
16FR60 STANDARD RECOVERY DIODES

Full PDF Text Transcription

Click to expand full text

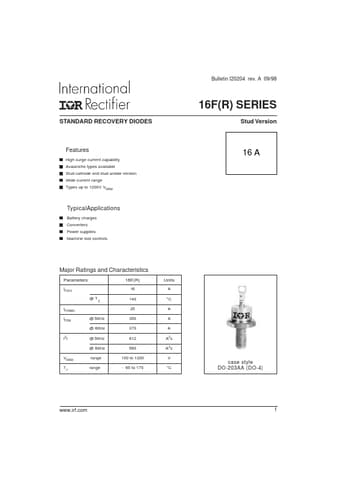

STANDARD RECOVERY DIODES Features High surge current capability Avalanche types available Stud cathode and stud anode version Wide current range Types up to 1200V VRRM TypicalApplications Battery charges Converters Power supplies Machine tool controls Bulletin I20204 rev. A 09/98 16F(R) SERIES Stud Version 16 A Major Ratings and Characteristics Parameters IF(AV) IF(RMS) @ TC IFSM @ 50Hz @ 60Hz 16F(R) 16 140 25 350 370 I2t @ 50Hz 612 @ 60Hz 560 VRRM TJ range range 100 to 1200 - 65 to 175 Units A °C A A A A2s A2s V °C case style DO-203AA (DO-4) www.irf.com 1 16F(R) Series Bulletin I20204 rev.
