IR2132JPBF, IR2132J, 3-PHASE BRIDGE DRIVER

Packages The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized 28-Lead SOIC monolithic construction. Logic inputs are compatible with CMOS or LSTTL outpu.

IR2132J-InternationalRectifier.pdf

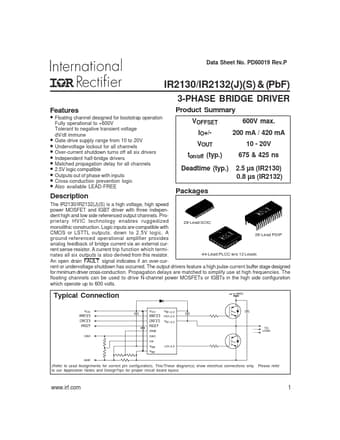

IR2132JPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IR2132JPBF, IR2132J. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IR2132JPBF, IR2132J

Manufacturer:

International Rectifier

File Size:

294.29 KB

Description:

3-PHASE BRIDGE DRIVER

Note:

This datasheet PDF includes multiple part numbers: IR2132JPBF, IR2132J.
Please refer to the document for exact specifications by model.

IR2132JPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for all cha
