PVI1050NS Datasheet - International Rectifier

PVI1050NS, Photovoltaic Isolator

The PVI Series Photovoltaic Isolator generates an electrically isolated DC voltage upon receipt of a DC input signal. It is capable of directly driving gates of power MOSFETs or IGBTs. It utilizes a monolithic integrated circuit photovoltaic generator of novel construction as its output. The output .

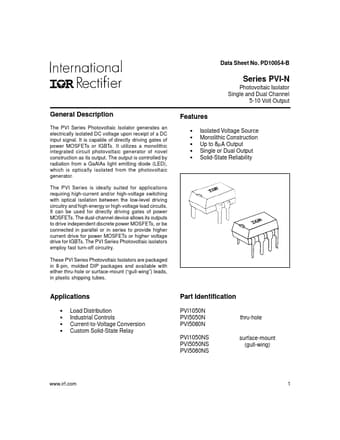

Datasheet Preview Page 1

PVI1050NS_InternationalRectifier.pdf

Preview of PVI1050NS PDF
PVI1050NS Datasheet Preview Page 2 PVI1050NS Datasheet Preview Page 3

Datasheet Details

Part number:

PVI1050NS

Manufacturer:

International Rectifier

File Size:

136.48 KB

Description:

Photovoltaic Isolator

PVI1050NS Features

* ! ! ! ! ! Isolated Voltage Source Monolithic Construction Up to 8µA Output Single or Dual Output Solid-State Reliability Applications ! ! ! ! Load Distribution Industrial Controls Current-to-Voltage Conversion Custom Solid-State Relay Part Identification PVI1050N PVI5050N PVI5080N PVI1050NS PVI505
