CA158 Operational Amplifiers

CA158 Description

CA158, CA158A, CA258, CA358, CA358A, CA2904, LM358, LM2904 Data Sheet October 1999 File Number 1019.6 Dual, 1MHz, Operational Amplifiers for Commercia.

CA158 Features

* Internal Frequency Compensation for Unity Gain
* High DC Voltage Gain
* . . . 100dB (Typ)
* Wide Bandwidth at Unity Gain
* . . .1MHz (Typ)
* Wide Power Supply Range: - Single Supply

CA158 Applications

* The CA158, CA158A, CA258, CA358, CA358A and CA2904 types consist of two independent, high gain, internally frequency compensated operational amplifiers which are designed specifically to operate from a single power supply over a wide range of voltages. They may also be operated from split power suppli

📥 Download Datasheet

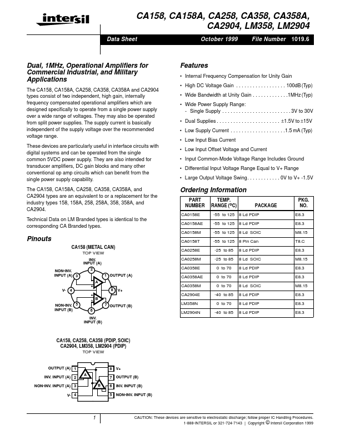

Preview of CA158 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CA158
Manufacturer
Intersil Corporation
File Size
91.46 KB
Datasheet
CA158_IntersilCorporation.pdf
Description
Operational Amplifiers
