JA21170, JA21000, Useful Voice with Real-Time Clock

JA21000 is a series of 3 to 340 seconds single chip voice synthesizer IC with RTC which contains a PWM direct drive circuit or AUD output for transistor application. In addition, this chip also provides .

JA21000_Jaztek.pdf

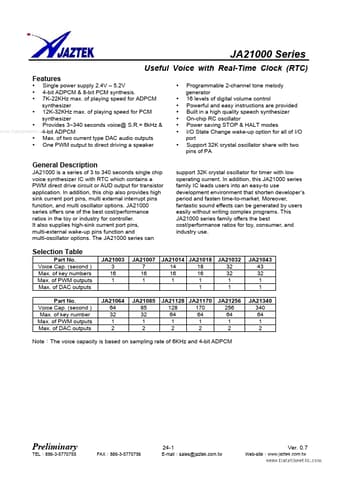

JA21170 Datasheet Preview — This datasheet PDF includes multiple part numbers: JA21170, JA21000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JA21170, JA21000

Manufacturer:

JAZTEK

File Size:

403.88 KB

Description:

Useful Voice with Real-Time Clock

Note:

This datasheet PDF includes multiple part numbers: JA21170, JA21000.
Please refer to the document for exact specifications by model.

JA21170 Features

* y Single power supply 2.4V

* 5.2V y 4-bit ADPCM & 8-bit PCM synthesis. y 7K-22KHz max. of playing speed for ADPCM synthesizer y 12K-32KHz max. of playing speed for PCM synthesizer y Provides 3~340 seconds voice@ S.R.= 6kHz & www.DataSheet4U.c4om-bit ADPCM y Max. of two current type DAC
