30KP60CA - 30000 Watts Transient Voltage Suppressors
JGD
Download the 30KP60CA datasheet PDF.
This datasheet also covers the 30KP28A variant, as both devices belong to the same 30000 watts transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.
Key Features
30KP28(C)(A) THRU 30KP288(C)(A)
30000 Watts Transient Voltage Suppressors.
30000 Watts Peak Pulse Power Capability on 10/1000us waveform.
Glass passivated junction and plastic package devices.
Low incremental surge resistance.
High temperature soldering guaranteed.
Fast response time: typically less than 1.0ps from 0 Volts
to BV, bidirectonal less than 10ns
C
ABA D Cathode Mark
P600
INCHES
MM
DIM
MIN MAX MIN MAX
A 1.000 --- 25.40 ---
B
0.339
0.358
8.60
9.1.
Full PDF Text Transcription for 30KP60CA (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
30KP60CA. For precise diagrams, and layout, please refer to the original PDF.

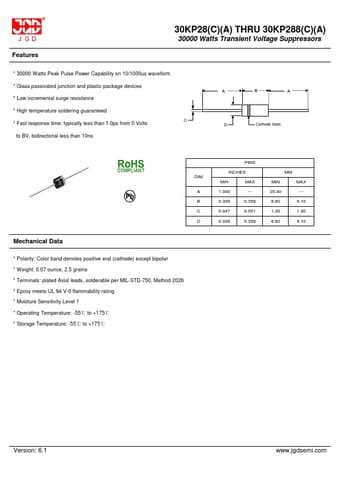

Features 30KP28(C)(A) THRU 30KP288(C)(A) 30000 Watts Transient Voltage Suppressors * 30000 Watts Peak Pulse Power Capability on 10/1000us waveform * Glass passivated junc...
View more extracted text
k Pulse Power Capability on 10/1000us waveform * Glass passivated junction and plastic package devices * Low incremental surge resistance * High temperature soldering guaranteed * Fast response time: typically less than 1.0ps from 0 Volts to BV, bidirectonal less than 10ns C ABA D Cathode Mark P600 INCHES MM DIM MIN MAX MIN MAX A 1.000 --- 25.40 --- B 0.339 0.358 8.60 9.10 C 0.047 0.051 1.20 1.30 D 0.339 0.358 8.60 9.10 Mechanical Data * Polarity: Color band denotes positive end (cathode) except bipolar * Weight: 0.07 ounce, 2.
30KP60CA Datasheet
