HC213LG-011 - Low Voltage DC Motor

📥 Download Datasheet

Datasheet Details

Part number HC213LG-011
Manufacturer Johnson Motor
File Size 123.20 KB
Description Low Voltage DC Motor
Datasheet download datasheet HC213LG-011 Datasheet

📁 Similar Datasheet

  • HC2100A03 - Hybrid Coupler (Yantel)
  • HC2100B03 - Hybrid Coupler (Yantel)
  • HC2100E03 - Hybrid Coupler (Yantel)
  • HC2100L03 - Hybrid Coupler (Yantel)
  • HC2100P03 - Hybrid Coupler (Yantel)
  • HC2100S03 - Hybrid Coupler (Yantel)
  • HC2150U03-040 - 90 Degree Hybrid (Yantel)
  • HC2000 - Home Theater DLP Projector (mitsubishi)
  • HC20000 - High Performance CMOS Gate Array (Honeywell Solid State Electronics)
  • HC20000 - HIGH-PERFORMANCE CMOS GATE ARRAY (Honeywell)
Other Datasheets by Johnson Motor

    Full PDF Text Transcription

    Click to expand full text

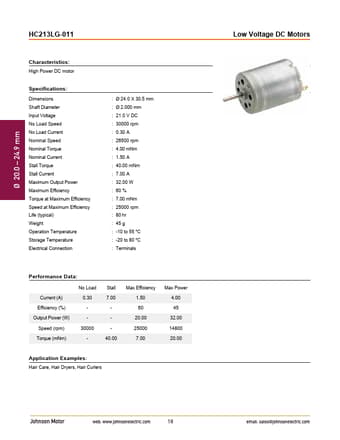

    Ø 20.0 – 24.9 mm HC213LG-011 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Nominal Speed Nominal Torque Nominal Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Torque at Maximum Efficiency Speed at Maximum Efficiency Life (typical) Weight Operation Temperature Storage Temperature Electrical Connection : Ø 24.0 X 30.5 mm : Ø 2.000 mm : 21.0 V DC : 30000 rpm : 0.30 A : 26500 rpm : 4.00 mNm : 1.50 A : 40.00 mNm : 7.00 A : 32.00 W : 60 % : 7.00 mNm : 25000 rpm : 80 hr : 45 g : -10 to 55 °C : -20 to 80 °C : Terminals Performance Data: No Load Current (A) 0.30 Efficiency (%) - Output Power (W) - Speed (rpm) 30000 Torque (mNm) - Stall 7.00 40.00 Max Efficiency 1.50 60 20.
