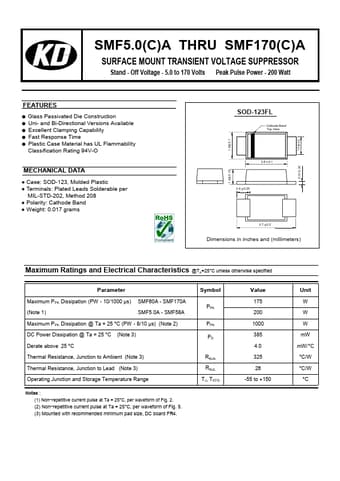

SMF150A
SMF150A is SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR manufactured by KD.
- Part of the SMF5.0A comparator family.
- Part of the SMF5.0A comparator family.
FEATURES
- Glass Passivated Die Construction
- Uni- and Bi-Directional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Plastic Case Material has UL Flammability
Classification Rating 94V-O
MECHANICAL DATA
- Case: SOD-123, Molded Plastic
- Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
- Polarity: Cathode Band
- Weight: 0.017 grams
1.4 0.15
1.9 0.1
SOD-123FL
Cathode Band Top View
2.8 0.1
0.6 0.25
3.7 0.2
Dimensions in inches and (millimeters)
1.0 0.2
Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified
Parameter
Maximum PPK Dissipation (PW
- 10/1000 μs) SMF60A
- SMF170A
(Note 1)
SMF5.0A
- SMF58A
Maximum PPK Dissipation @ Ta = 25 °C (PW
- 8/10 μs) (Note 2)
DC Power Dissipation @ Ta = 25 °C (Note 3)
Derate above 25 °C
Thermal...
