GBU10A80B - Bridge Rectifiers

Download the GBU10A80B datasheet PDF. This datasheet also covers the GBU10A60B variant, as both devices belong to the same bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • !AB#&C%&0AD;&&/1(AE 86+ !AF/G/&,/AH#$(%4/AI66H=A:66H !AJ;&4/A#G/&$#%0A&%('14A.
  • AKL6A%-@/&/,A@/%. !AM0/%$AN#&A@&'1(/0A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBU10A60B-KEC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBU10A80B
Manufacturer KEC
File Size 501.91 KB
Description Bridge Rectifiers
Datasheet download datasheet GBU10A80B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBU10A 10A GLASS PASSIVATED BRIDGE RECTIFIER MOSPEC
GBU10A 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER WON-TOP
GBU10A Silicon Bridge Rectifiers Luguang Electronic
GBU10A Single Phase Glass Passivated Bridge Rectifiers MCC
GBU10A Bridge Rectifier TAITRON

Other Datasheets by KEC

Part Number Description
GBU10A60B Bridge Rectifiers
GBU06A60B Bridge Rectifiers
GBU06A80B Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

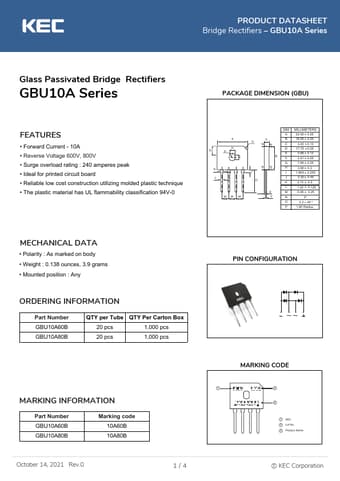

PRODUCT DATASHEET Bridge Rectifiers – GBU10A Series Glass Passivated Bridge Rectifiers GBU10A Series PACKAGE DIMENSION (GBU) FEATURES !AB#&C%&0AD;&&/1(AE 86+ !AF/G/&,/AH#$(%4/AI66H=A:66H !AJ;&4/A#G/&$#%0A&%('14A*AKL6A%-@/&/,A@/%. !AM0/%$AN#&A@&'1(/0A<'&<;'(A2#%&0 !AF/$'%2$/A$#C <#,( <#1,(&;<('#1A;('$'O'14A-#$0/0A@$%,('LHE6 A G H P I K L MM M O C NN B NN J D E F DIM MILLIMETERS A 22.05 +_ 0.25 B 18.55 +_ 0.25 C 3.43 +_ 0.13 D 17.75 +_ 0.25 E 0.88 +_ 0.12 F 0.51 +_ 0.05 G 7.65 +_ 0.25 H 3.80 +_ 0.3 I 1.905 +_ 0.255 J 2.30 +_ 0.45 K 2.15 +_ 0.2 L 1.02 +_ 0.125 M 5.08 +_ 0.25 N 2 O 3.2 + 45 P 1.90 Radius MECHANICAL DATA ! "#$%&'() * +, -%&.
