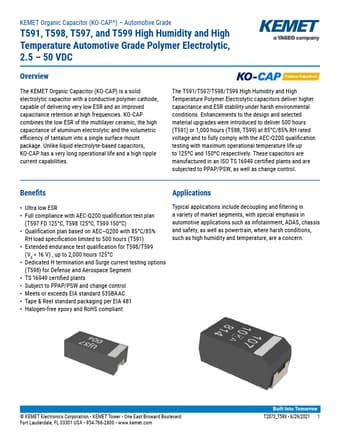

KEMET Organic Capacitor (KO-CAP®) - Automotive Grade T591, T598, T597, and T599 High Humidity and High Temperature Automotive Grade Polymer Electrolytic, 2.5 - 50 VDC Overview The KEMET Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode, capable of delivering very low ESR and an improved capacitance retention at high frequencies. KO-CAP bines the low ESR of the multilayer ceramic, the high capacitance of aluminum electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and a high ripple current capabilities. The T591/T597/T598/T599 High Humidity and High Temperature Polymer Electrolytic capacitors deliver higher capacitance and ESR stability under harsh environmental conditions. Enhancements to the design and selected material upgrades were introduced to deliver 500 hours (T591) or 1,000 hours (T598, T599) at 85°C/85% RH rated voltage and to fully ply with the AEC-Q200 qualification testing with maximum operational temperature life up to 125ºC and 150ºC respectively. These capacitors are manufactured in an ISO TS 16949 certified plants and are subjected to PPAP/PSW, as well as change control. Benefits Applications - Ultra low ESR - Full pliance with AEC-Q200 qualification test plan (T597 FD 125°C, T598 125°C, T599 150°C) - Qualification plan based on AEC- Q200 with 85°C/85% RH load specification limited to 500 hours (T591) - Extended endurance test qualification for T598/T599 (VR < 16 V) , up to 2,000 hours 125°C - Dedicated H termination and Surge current testing options (T598) for Defense and Aerospace Segment - TS 16949 certified plants - Subject to PPAP/PSW and change control - Meets or exceeds EIA standard 535BAAC - Tape & Reel standard packaging per EIA 481 - Halogen-free epoxy and Ro HS pliant Typical applications include decoupling and filtering in a variety of market segments,...
