WG732H - wide terminal type surge current flat chip resistors

This page provides the datasheet information for the WG732H, a member of the WG73 wide terminal type surge current flat chip resistors family.

Features

  • EU.
  • Superior to WK73 series in pulse withstanding voltage.
  • Suitable for both flow and reflow solderings.
  • This products meet EU RoHS requirements.
  • AEC-Q200 Qualified dimensions and construction L cc W Ceramic Substrate Sn Plating t Ni Plating d Protective Coating Resistive Film Inner Electrode NEW NEW Type Dimensions inches (mm) (Inch Size Code) L W c d t 2B (0612) +.004 +.004 .063± -.008 .126± -.012 .012±.008 .018±.006 .024±.004 (1.6±+-0.

📥 Download Datasheet

Datasheet preview – WG732H

Datasheet Details

Part number WG732H
Manufacturer KOA
File Size 213.89 KB
Description wide terminal type surge current flat chip resistors
Datasheet download datasheet WG732H Datasheet
Additional preview pages of the WG732H datasheet.

📁 Similar Datasheet

Other Datasheets by KOA
  • WG732B - wide terminal type surge current flat chip resistors
  • WG73 - wide terminal type surge current flat chip resistors
  • WG733A - wide terminal type surge current flat chip resistors

Full PDF Text Transcription

Click to expand full text

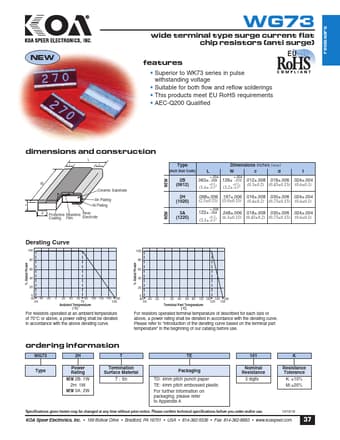

resistors NEW WG73 wide terminal type surge current flat chip resistors (anti surge) features EU • Superior to WK73 series in pulse withstanding voltage • Suitable for both flow and reflow solderings • This products meet EU RoHS requirements • AEC-Q200 Qualified dimensions and construction L cc W Ceramic Substrate Sn Plating t Ni Plating d Protective Coating Resistive Film Inner Electrode NEW NEW Type Dimensions inches (mm) (Inch Size Code) L W c d t 2B (0612) +.004 +.004 .063± -.008 .126± -.012 .012±.008 .018±.006 .024±.004 (1.6±+-00..21) (3.2±+-00..31) (0.3±0.2) (0.45±0.15) (0.6±0.1) 2H (1020) .098±.006 .197±.006 .016±.008 .030±.006 .024±.004 (2.5±0.15) (5.0±0.15) (0.4±0.2) (0.75±0.15) (0.6±0.1) 3A (1225) +.008 .122± -.004 .248±.006 .018±.008 .030±.006 .
