SG256 - PHOTOINTERRUPTERS

Features

  • : 5 mm Gap width : 5 mm.
  • PWB direct mount type.
  • Snap-in mount.

📥 Download Datasheet

Datasheet Details

Part number SG256
Manufacturer KODENSHI
File Size 138.70 KB
Description PHOTOINTERRUPTERS
Datasheet download datasheet SG256 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SG25664A LCD ETC
SG2567RD312893HBD 2GByte (256Mx72) DDR3 SDRAM Module SMART Modular Technologies
SG2567RD312893SDD 2GByte (256Mx72) DDR3 SDRAM Module SMART Modular Technologies
SG2567RD312893SED 2GByte (256Mx72) DDR3 SDRAM Module SMART Modular Technologies
SG2567RD312893UUD 2GByte (256Mx72) DDR3 SDRAM Module SMART Modular Technologies

Other Datasheets by KODENSHI

Part Number Description
SG203 Photointerrupters
SG205 PHOTOINTERRUPTERS
SG206F PHOTOINTERRUPTERS
SG207 Photointerrupters
SG214 PHOTOINTERRUPTERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

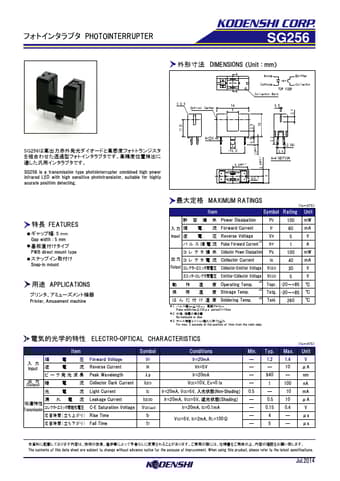

PHOTOINTERRUPTER SG256 DIMENSIONS （Unit : mm） A Anode Emitter Cathode Collector A' TOP VIEW　 Collector Mark　 C 0.8　 Optical Center　 14 5 0.5 (7.5) 0.7 2.5 3.5±0.5 2.6±0.1 10 6 3.2 2.1 SG256 。 。 SG256 is a transmission type photointerrupter combined high power infrared LED with high sensitive phototransistor, suitable for highly acurate position detecting. 4x□0.45 2 (10.3) 6.6±0.1 φ0.7 (2.54) 3.
