SMK1820D2 Advanced N-Ch Power MOSFET

SMK1820D2 Description

SMK1820D2 Advanced N-Ch Power MOSFET HIGH VOLTAGE SWITCHING APPLICATIONS .

SMK1820D2 Features

* High Voltage : BVDSS=200V(Min. ) Low Crss : Crss=55pF(Typ. ) Low gate charge : Qg=22nC(Typ. ) Low RDS(on) : RDS(on)=0.17Ω(Max. ) PIN Connection D D Ordering Information Type No. SMK1820D2 Marking SMK1820 Package Code D2-PAK G S G D2-PAK S Marking Diagram Column 1 : Manufact

📥 Download Datasheet

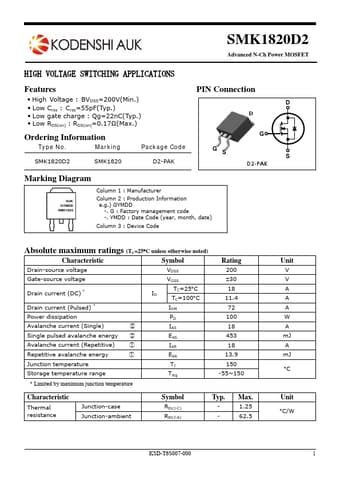

Preview of SMK1820D2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMK1820D2
Manufacturer
KODENSHI KOREA
File Size
403.07 KB
Datasheet
SMK1820D2-KODENSHIKOREA.pdf
Description
Advanced N-Ch Power MOSFET
