2SD1817 NPN Epitaxial Planar Silicon Transistor

2SD1817 Description

SMD Type Transistors NPN Epitaxial Planar Silicon Transistor 2SD1817 TO-252 +0.15 1.50 -0.15 Unit: mm 2.30 +0.8 0.50-0.7 +0.1 -0.1 .

2SD1817 Features

* High DC current gain. +0.2 9.70 -0.2 6.50 +0.2 5.30-0.2 +0.15 -0.15 +0.1 0.80-0.1 +0.15 0.50 -0.15 0.127 max Electrical Connection 2.3 +0.15 4.60-0.15 +0.1 0.60-0.1 +0.28 1.50 -0.1 +0.25 2.65 -0.1 +0.15 5.55 -0.15 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter C

📥 Download Datasheet

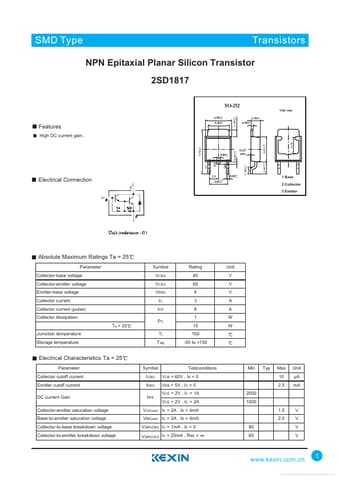

Preview of 2SD1817 PDF

Datasheet Details

Part number
2SD1817
Manufacturer
Kexin
File Size
58.43 KB
Datasheet
2SD1817_Kexin.pdf
Description
NPN Epitaxial Planar Silicon Transistor
