BCX51 - PNP Medium Power Transistors

Features

  • High current (max. 1 A). Low voltage (max. 80 V). Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage BCX51 BCX52 BCX53 Collector-emitter voltage BCX51 BCX52 BCX53 Emitter-base voltage Collector current Peak collector current Peak base current Total power dissipation Storage temperature Junction temperature Operating ambient temperature Thermal resistance from junction to ambient Thermal resistance from junction to solder point Symbol VCBO VCEO VEBO IC ICM IBM.

📥 Download Datasheet

Datasheet preview – BCX51

Datasheet Details

Part number BCX51
Manufacturer Kexin
File Size 49.33 KB
Description PNP Medium Power Transistors
Datasheet download datasheet BCX51 Datasheet
Additional preview pages of the BCX51 datasheet.

📁 Similar Datasheet

  • BCX51 - PNP Medium Power Transistor (Multicomp)
  • BCX51 - PNP Silicon AF Transistors (Bruckewell)
  • BCX51 - PNP medium power transistors (NXP)
  • BCX51 - SURFACE MOUNT PNP SILICON TRANSISTOR (Central Semiconductor Corp)
  • BCX51 - PNP Silicon AF Transistors (Infineon Technologies AG)
  • BCX51 - 1A PNP medium power transistors (nexperia)
  • BCX51 - PNP Medium power transistors (GME)
  • BCX51 - Transistor (Motorola)
  • BCX51 - PNP TRANSISTOR (WEJ)
  • BCX51 - PNP Transistors (SeCoS)
Other Datasheets by Kexin
  • BCX52 - PNP Medium Power Transistors
  • BCX53 - PNP Medium Power Transistors
  • BCX54 - NPN Medium Power Transistors
  • BCX55 - NPN Medium Power Transistors
  • BCX56 - NPN Medium Power Transistors
  • BCX17 - PNP Transistor
  • BCX18 - PNP Transistor
  • BCX19 - NPN General Purpose Transistors

Full PDF Text Transcription

Click to expand full text

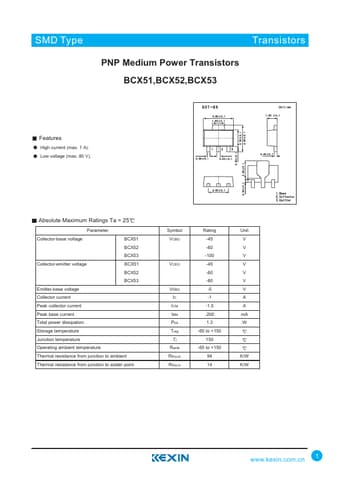

SMD Type Transistors PNP Medium Power Transistors BCX51,BCX52,BCX53 Features High current (max. 1 A). Low voltage (max. 80 V). Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage BCX51 BCX52 BCX53 Collector-emitter voltage BCX51 BCX52 BCX53 Emitter-base voltage Collector current Peak collector current Peak base current Total power dissipation Storage temperature Junction temperature Operating ambient temperature Thermal resistance from junction to ambient Thermal resistance from junction to solder point Symbol VCBO VCEO VEBO IC ICM IBM Ptot Tstg Tj Ramb Rth(j-a) Rth(j-s) Rating -45 -60 -100 -45 -60 -80 -5 -1 -1.5 -200 1.3 -65 to +150 150 -65 to +150 94 14 Unit V V V V V V V A A mA W K/W K/W www.kexin.com.
