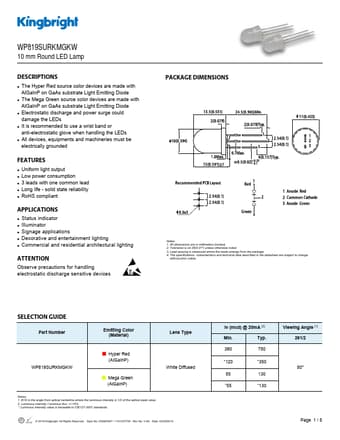

WP819SURKMGKW
10 mm Round LED Lamp
DESCRIPTIONS
z The Hyper Red source color devices are made with
AlGaInP on GaAs substrate Light Emitting Diode
z The Mega Green source color devices are made with
AlGaInP on GaAs substrate Light Emitting Diode
z Electrostatic discharge and power surge could
damage the LEDs
z It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs
z All devices, equipments and machineries must be
electrically grounded
FEATURES
z Uniform light output
z Low power consumption
z 3 leads with one common lead
z Long life - solid state reliability
z RoHS compliant
APPLICATIONS
z Status indicator
z Illuminator
z Signage applications
z Decorative and entertainment lighting
z Commercial and residential architectural lighting
ATTENTION
Observe precautions for handling
electrostatic discharge sensitive devices
PACKAGE DIMENSIONS
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change
without prior notice.
SELECTION GUIDE
Part Number
Emitting Color
(Material)
Lens Type
WP819SURKMGKW
Hyper Red
(AIGaInP)
Mega Green
(AlGaInP)
White Diffused
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity / luminous flux: +/-15%.
* Luminous intensity value is traceable to CIE127-2007 standards.
© 2019 Kingbright. All Rights Reserved. Spec No: DSAE9427 / 1101007729 Rev No: V.6A Date: 03/05/2019
Iv (mcd) @ 20mA [2]
Min.
Typ.
380
750
*120
*350
55
130
*55
*130
Viewing Angle [1]
2θ1/2
50°
Page 1 / 5




Kingbright

WP819SURKMGKW Datasheet Preview

WP819SURKMGKW Datasheet

ROUND LED

No Preview Available !

ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25°C
Parameter
Symbol
Emitting Color
Wavelength at Peak Emission IF = 20mA
λpeak
Hyper Red
Mega Green
Dominant Wavelength IF = 20mA
λdom [1]
Hyper Red
Mega Green
Spectral Bandwidth at 50% Φ REL MAX
IF = 20mA
Δλ
Capacitance
C
Hyper Red
Mega Green
Hyper Red
Mega Green
Forward Voltage IF = 20mA
Reverse Current (VR = 5V)
VF [2]
IR
Hyper Red
Mega Green
Hyper Red
Mega Green
Notes:
1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. )
2. Forward voltage: ±0.1V.
3. Wavelength value is traceable to CIE127-2007 standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure.
WP819SURKMGKW
Value
Unit
Typ.
Max.
645
574
-
nm
630
570
-
nm
28
20
-
nm
35
15
-
pF
1.95
2.5
2.1
2.5
V
-
10
10
µA
ABSOLUTE MAXIMUM RATINGS at TA=25°C
Parameter
Symbol
Hyper Red
Value
Mega Green
Power Dissipation
PD
75
75
Reverse Voltage
VR
5
5
Junction Temperature
Tj
115
115
Operating Temperature
Top
-40 to +85
Storage Temperature
Tstg
-40 to +85
DC Forward Current
Peak Forward Current
IF
30
30
IFM [1]
185
150
Electrostatic Discharge Threshold (HBM)
-
Lead Solder Temperature [2]
3000
3000
260°C For 3 Seconds
Lead Solder Temperature [3]
260°C For 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
4. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033.
© 2019 Kingbright. All Rights Reserved. Spec No: DSAE9427 / 1101007729 Rev No: V.6A Date: 03/05/2019
Unit
mW
V
°C
°C
°C
mA
mA
V
Page 2 / 5
