GBU4005 Datasheet Preview

GBU4005 Datasheet

Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers

No Preview Available !

Website: www.kingtronics.com Email: info@kingtronics.com Tel: (852) 8106 7033 Fax: (852) 8106 7099

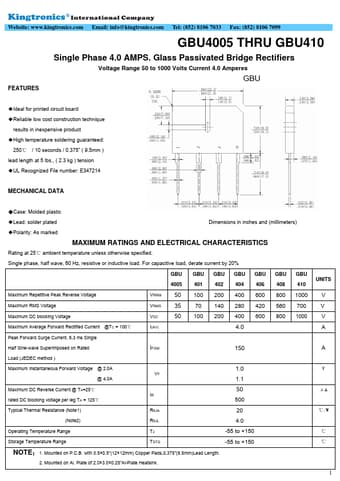

GBU4005 THRU GBU410
FEATURES
Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
Voltage Range 50 to 1000 Volts Current 4.0 Amperes
GBU
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
High temperature soldering guaranteed:
250/ 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
UL Recognized File number: E347214
MECHANICAL DATA
Case: Molded plastic
Lead: solder plated
Polarity: As marked
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%
GBU GBU GBU GBU GBU GBU GBU
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified Current @TC = 100
4005 401 402 404 406 408 410
VRRM 50 100 200 400 600 800 1000
VRMS 35 70 140 280 420 560 700
VDC 50 100 200 400 600 800 1000
I(AV) 4.0
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
IFSM
150
Load (JEDEC method )
Maximum Instantaneous Forward Voltage @ 2.0A
@ 4.0A
VF
1.0
1.1
Maximum DC Reverse Current @ TA=25
rated DC blocking voltage per leg TA = 125
IR
50
500
Typical Thermal Resistance (Note1)
RθJA
20
(Note2)
RθJL
4.0
Operating Temperature Range
TJ -55 to +150
Storage Temperature Range
TSTG
-55 to +150
NOTE1. Mounted on P.C.B. with 0.5×0.5”(12×12mm) Copper Pads,0.375”(9.5mm)Lead Length.
2. Mounted on Al. Plate of 2.0×3.0×0.25”Al-Plate Heatsink.
UNITS
V
V
V
A
A
V
μA
℃/W
1




Kingtronics

GBU4005 Datasheet Preview

GBU4005 Datasheet

Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers

No Preview Available !

Website: www.kingtronics.com Email: info@kingtronics.com Tel: (852) 8106 7033 Fax: (852) 8106 7099
GBU4005 THRU GBU410
RATING AND CHARACTERISTIC CURVES GBU4005 THRU GBU410
Note: Specifications are subject to change without notice.
2
