GBU402 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers

Download the GBU402 datasheet PDF (GBU4005 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single phase 4.0 amps. glass passivated bridge rectifiers.

Features

  • Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 4.0 Amperes GBU.
  • Ideal for printed circuit board.
  • Reliable low cost construction technique results in inexpensive product.
  • High temperature soldering guaranteed: 250℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension.
  • UL Recognized File number: E347214.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBU4005-Kingtronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBU402
Manufacturer Kingtronics
File Size 496.45 KB
Description Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
Datasheet download datasheet GBU402 Datasheet

📁 Similar Datasheet

  • GBU402 - GLASS PASSIVATED CHIP SINGLE-PHASE BRIDGE RECTIFIER (First Silicon)
  • GBU402 - 4.0 AMP Glass Passivated Bridge Rectifiers (SeCoS)
  • GBU402 - Single-Phase 4.0A Glass Passivated Bridge Rectifier (SMC)
  • GBU402 - GLASS PASSIVATED BRIDGE RECTIFIER (Zowie)
  • GBU402 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (UPM)
  • GBU402 - 4.0A Single-Phase Bridge Rectifier (SEP ELECTRONIC)
  • GBU402 - 4A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • GBU402 - GLASS PASSIVATED BRIDGE RECTIFIERS (LITE-ON)
  • GBU402 - Glass Passivated Bridge Rectifier (Eris)
  • GBU402 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers (Taiwan Semiconductor)
Other Datasheets by Kingtronics
  • GBU4005 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
  • GBU401 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
  • GBU404 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
  • GBU406 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
  • GBU408 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
  • GBU410 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers
  • GBU15005 - SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU1501 - SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

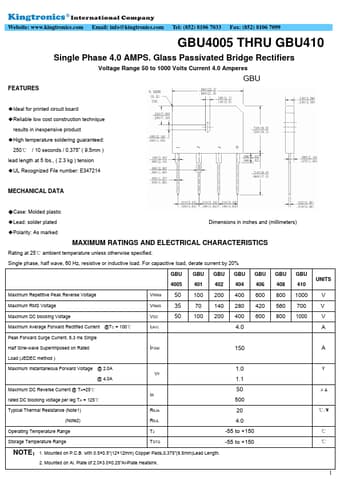

Website: www.kingtronics.com Email: info@kingtronics.com Tel: (852) 8106 7033 Fax: (852) 8106 7099 GBU4005 THRU GBU410 FEATURES Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 4.0 Amperes GBU ◆Ideal for printed circuit board ◆Reliable low cost construction technique results in inexpensive product ◆High temperature soldering guaranteed: 250℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension ◆UL Recognized File number: E347214 MECHANICAL DATA ◆Case: Molded plastic ◆Lead: solder plated ◆Polarity: As marked Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
