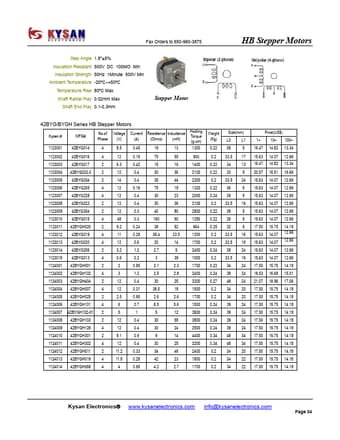

42BYG020 datasheet by KySan.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | 42BYG020 |
|---|---|
| Datasheet | 42BYG020 42BYG Datasheet (PDF) |
| File Size | 160.89 KB |
| Manufacturer | KySan |
| Description | Stepper Motor |
|
|
|
Fax Orders to 650-960-3875 HB Stepper Motors Step Angle 1.8°±5% Insulation Resistant 500V DC 100MO Min Insulation Strength 50Hz 1Minute 500V Min Ambient Temperature -20ºC~+50ºC Temperature Rise 80ºC Max Shaft Radial Play 0.02mm Max Shaft End Play 0.1-0.3mm.
| Part Number | Description |
|---|---|
| 42BYG023 | Stepper Motor |
| 42BYG023-2 | Stepper Motor |
| 42BYG013 | Stepper Motor |
| 42BYG014 | Stepper Motor |
| 42BYG015 | Stepper Motor |
| 42BYG016 | Stepper Motor |
| 42BYG017 | Stepper Motor |
| 42BYG019 | Stepper Motor |
| 42BYG034 | Stepper Motor |
| 42BYG205 | Stepper Motor |
