LP2NDC12V - PANEL MOUNTING RELAY

LEONE

Datasheet Details

Part number	LP2NDC12V
Manufacturer	LEONE
File Size	101.85 KB
Description	PANEL MOUNTING RELAY
Datasheet	LP2NDC12V Datasheet
Additional preview pages of the LP2NDC12V datasheet.

📁 Similar Datasheet

LP2-D0901xx - Contactors (Telemecanique)
LP2-D12004xx - Contactors (Telemecanique)
LP2-D1201xx - Contactors (Telemecanique)
LP2-D1801xx - Contactors (Telemecanique)
LP2-D25004xx - Contactors (Telemecanique)
LP2-D2501xx - Contactors (Telemecanique)
LP2-D3201xx - Contactors (Telemecanique)
LP2001 - Surface Mount 10Base-T Interface Modules (Link-PP)
LP2003 - Surface Mount 10Base-T Interface Modules (Link-PP)
LP2007 - Surface Mount 10Base-T Interface Modules (Link-PP)

Other Datasheets by LEONE

LP2NDC110V - PANEL MOUNTING RELAY
LP2NDC24V - PANEL MOUNTING RELAY
LP2NDC48V - PANEL MOUNTING RELAY
LP2NDC5V - PANEL MOUNTING RELAY
LP2NDC6V - PANEL MOUNTING RELAY
LP2NAC110V - PANEL MOUNTING RELAY
LP2NAC12V - PANEL MOUNTING RELAY
LP2NAC220V - PANEL MOUNTING RELAY

Full PDF Text Transcription

Click to expand full text

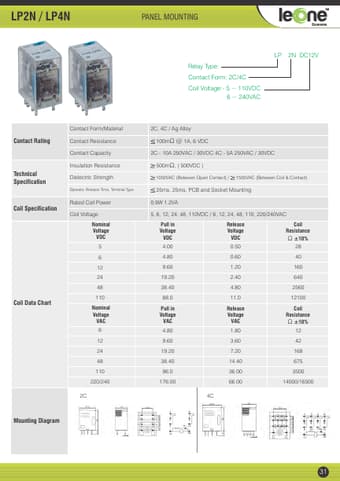

LP2N / LP4N PANEL MOUNTING LP Relay Type: Contact Form: 2C/4C Coil Voltage:- 5 ~ 110VDC 6 ~ 240VAC 2N DC12V Contact Form/Material 2C, 4C / Ag Alloy 100mΩ @ 1A, 6 VDC 2C:- 10A 250VAC / 30VDC 4C:- 5A 250VAC / 30VDC 500mΩ, ( 500VDC ) 1000VAC (Between Open Contact) / 1500VAC (Between Coil & Contact) 25ms, 25ms, PCB and Socket Mounting 0.9W 1.2VA 5, 6, 12, 24, 48, 110VDC / 6, 12, 24, 48, 110, 220/240VAC Pull in Voltage VDC 4.00 4.80 9.60 19.20 38.40 88.0 Pull in Voltage VAC 4.80 9.60 19.20 38.40 96.0 176.00 4C Release Voltage VDC 0.50 0.60 1.20 2.40 4.80 11.0 Release Voltage VAC 1.80 3.60 7.20 14.40 36.00 66.
