HER301G - Glass Passivated High Efficient Rectifiers

Datasheet Summary

Features

  • Glass passivated chip junction. High efficiency, Low VF High current capability High reliability High surge current capability For use in low voltage, high frequency inventor, free wheeling, and polarity protection.

📥 Download Datasheet

Datasheet preview – HER301G

Datasheet Details

Part number HER301G
Manufacturer LGE
File Size 160.15 KB
Description Glass Passivated High Efficient Rectifiers
Datasheet download datasheet HER301G Datasheet
Additional preview pages of the HER301G datasheet.

📁 Similar Datasheet

  • HER301G - 3.0 AMPS. GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS (Jinan Gude Electronic Device)
  • HER301G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (GOOD-ARK Electronics)
  • HER301G - 3.0A Leaded Type High Effciency Rectifiers (American First Semiconductor)
  • HER301G - 3.0 AMP GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS (UNIOHM)
  • HER301G - Glass Passivated Junction High Efficiency Rectifiers (LRC)
  • HER301G - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (RECTRON)
  • HER301G - GLASS PASSIVATED RECTIFIER (GALAXY ELECTRICAL)
  • HER301G - Glass Passivated High Efficient Rectifiers (Taiwan Semiconductor)
  • HER301G - Glass Passivated High Efficient Rectifiers (MCC)
  • HER301G - Glass Passivated High Efficiency Rectifiers (SeCoS)
Other Datasheets by LGE
  • HER302G - Glass Passivated High Efficient Rectifiers
  • HER303G - Glass Passivated High Efficient Rectifiers
  • HER304G - Glass Passivated High Efficient Rectifiers
  • HER305G - Glass Passivated High Efficient Rectifiers
  • HER306G - Glass Passivated High Efficient Rectifiers
  • HER307G - Glass Passivated High Efficient Rectifiers
  • HER308G - Glass Passivated High Efficient Rectifiers
  • HER101 - High Efficient Rectifiers

Full PDF Text Transcription

Click to expand full text

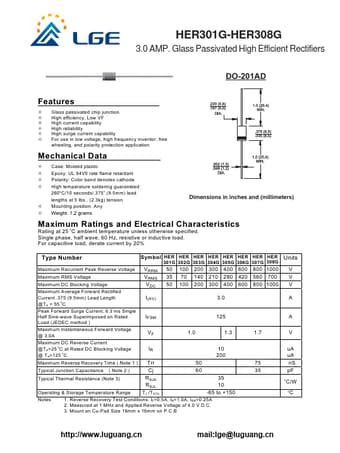

HER301G-HER308G 3.0 AMP. Glass Passivated High Efficient Rectifiers DO-201AD Features Glass passivated chip junction. High efficiency, Low VF High current capability High reliability High surge current capability For use in low voltage, high frequency inventor, free wheeling, and polarity protection application. Mechanical Data Case: Molded plastic Epoxy: UL 94V0 rate flame retardant Polarity: Color band denotes cathode High temperature soldering guaranteed: 260oC/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs., (2.3kg) tension Mounting position: Any Weight: 1.2 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
