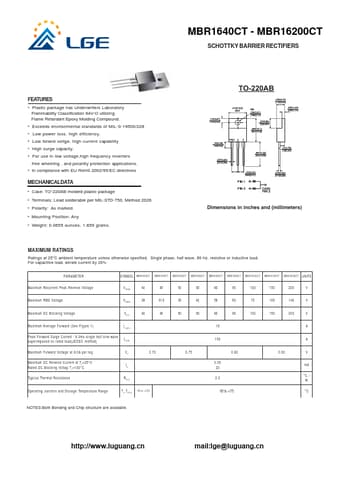

MBR1650CT
MBR1650CT is SCHOTTKY BARRIER RECTIFIERS manufactured by LGE.
- Part of the MBR1640CT comparator family.
- Part of the MBR1640CT comparator family.
MBR1640CT
- MBR16200CT
SCHOTTKY BARRIER RECTIFIERS
Features
- Plastic package has Underwriters Laboratory
Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding pound.
- Exceeds environmental standards of MIL-S-19500/228
- Low power loss, high efficiency.
- Low forwrd voltge, high current capability
- High surge capacity.
- For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications.
- In pliance with EU Ro HS 2002/95/EC directives
MECHANICALDATA
- Case: TO-220AB molded plastic package
- Terminals: Lead solderable per MIL-STD-750, Method 2026
- Polarity: As marked.
- Mounting Position: Any
- Weight: 0.0655 ounces, 1.859 grams.
TO-220AB
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%
PARAMETER
S YMB OL MBR1640CT MBR1645CT MBR1650CT MBR1660CT MBR1680CT MBR1690CT MBR16100CT MBR16150CT MBR16200CT UNITS
Maximum Recurrent Peak Reverse Voltage
VRRM
90 100 150 200 V
Maximum RMS Voltage
VRMS
105 140...
