LGE
LGE

SR360 Datasheet Preview

SR360 Datasheet

Schottky Barrier Rectifiers

No Preview Available !

SR360 pdf

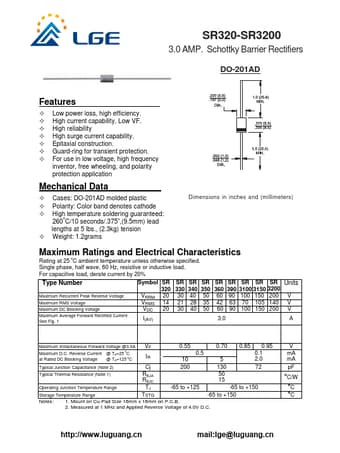

SR320-SR3200
3.0 AMP. Schottky Barrier Rectifiers
DO-201AD
Features
Low power loss, high efficiency.
High current capability, Low VF.
High reliability
High surge current capability.
Epitaxial construction.
Guard-ring for transient protection.
For use in low voltage, high frequency
inventor, free wheeling, and polarity
protection application
Mechanical Data
Cases: DO-201AD molded plastic
Polarity: Color band denotes cathode
High temperature soldering guaranteed:
o
260 C/10 seconds/.375”,(9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Weight: 1.2grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25 oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Symbol SR SR SR SR SR SR SR SR SR Units
320 330 340 350 360 390 3100 3150 3200
VRRM 20 30 40 50 60 90 100 150 200 V
VRMS 14 21 28 35 42 63 70 105 140 V
VDC 20 30 40 50 60 90 100 150 200 V
I(AV) 3.0 A
Maximum Instantaneous Forward Voltage @3.0A
Maximum D.C. Reverse Current @ TA=25 oC
at Rated DC Blocking Voltage @ TA=125 oC
VF
IR
0.55 0.70 0.85 0.95
0.5 0.1
10 5 2.0
Typical Junction Capacitance (Note 2)
Cj 200 130 72
Typical Thermal Resistance (Note 1)
Operating Junction Temperature Range
RθJA
RθJC
TJ
-65 to +125
50
15
-65 to +150
Storage Temperature Range
TSTG
-65 to +150
Notes:
1. Mount on Cu-Pad Size 16mm x 16mm on P.C.B.
2. Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
V
mA
mA
pF
oC/W
oC
oC
http://www.luguang.cn
mail:lge@luguang.cn



LGE
LGE

SR360 Datasheet Preview

SR360 Datasheet

Schottky Barrier Rectifiers

No Preview Available !

SR360 pdf
SR320-SR3200
3.0 AMP. Schottky Barrier Rectifiers
RATINGS AND CHARACTERISTIC CURVES
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
4
3
2
1
0
0 25 50 75 100 125 150 175
LEAD TEMPERATURE. (oC)
FIG.3- TYPICAL FORWARD CHARACTERISTICS
50
10
SR3S2R03-S5R0-3S4R0360
1.0 SR390-SR3S1R030150
0.1
.2 .3 .4
.5 .6
Tj=25oC
Pulse Width=300 s
1% Duty Cycle
.7 .8 .9 1.0
FORWARD VOLTAGE. (V)
FIG.5- TYPICAL JUNCTION CAPACITANCE
1000
600
400
200
100
80
60
SSRR335200-3-36400
40
20
SR390-SR3200
10 .1
.2
.4 1.0
2
4 10
REVERSE VOLTAGE. (V)
20 40 100
FIG.2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
8.3ms Single Half Sine Wave
JEDEC Method
80
60
40
20
0
1
2
4 6 8 10
20
40 60 80 100
NUMBER OF CYCLES AT 60Hz
FIG.4- TYPICAL REVERSE CHARACTERISTICS
10
Tj=1250C
1.0
.10 Tj=750C
.01 Tj=250C
SR320-340
SR350-3150
.001
0 20 40 60 80 100 120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
FIG.6- TYPICAL TRANSIENT THERMAL
CHARACTERISTICS
100
10
1
0.1
0.01
0.1 1 10
T, PULSE DURATION. (sec)
100
http://www.luguang.cn
mail:lge@luguang.cn
