SG2532 PRECISION GENERAL-PURPOSE REGULATOR

SG2532 Description

SG1532/SG2532/SG3532 PRECISION GENERAL-PURPOSE REGULATOR .
This monolithic integrated circuit is a versatile, general-purpose voltage regulator designed as a substantially improved replacement for the popular.

SG2532 Features

* Input voltage range of 4.5V to 50V 2.5V low noise reference Independent shutdown terminal Improved line and load regulation 80mV current limit sense voltage Fully protected including thermal shutdown
* Useful output current to 150mA

SG2532 Applications

* These devices are available in both hermetic 14-pin cerdip and 10-pin TO96 packages. In the T-package, these units are interchangeable with the LAS1000 and LAS-1100 regulators. The SG1532 is rated for operation over the ambient temperature range of -55°C to 125°C while the SG2532 and SG3532 are int

📥 Download Datasheet

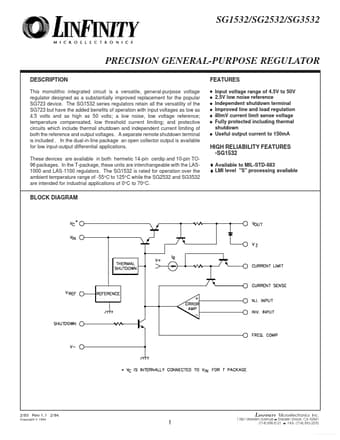

Preview of SG2532 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SG2532
Manufacturer
LINFINITY
File Size
122.85 KB
Datasheet
SG2532_LINFINITY.pdf
Description
PRECISION GENERAL-PURPOSE REGULATOR
