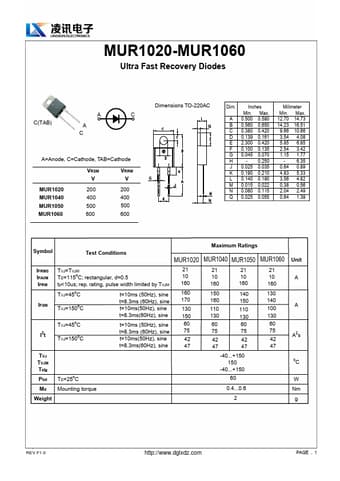

MUR1020-MUR1060
Ultra Fast Recovery Diodes
C(TAB)
A
A C
C
A=Anode, C=Cathode, TAB=Cathode
MUR1020 MUR1040
MUR1050 MUR1060
VRSM V
200 400 500 600
VRRM V
200 400 500 600
Dimensions TO-220AC
Dim.
A B C D E F G H J K L M N Q
Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070
- 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055
Milimeter Min. Max. 12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77
- 6.35 0.64 0.89 4.83 5.33 3.56 4.82 0.38 0.56 2.04 2.49 0.64 1.39
Symbol
Test Conditions
Maximum Ratings
MUR1020 MUR1040 MUR1050 MUR1060
IFRMS TVJ=TVJM
21 21 21 21
IFAVM TC=115oC; rectangular, d=0.5
10 10 10 10
IFRM tp<10us; rep.
