GBJ1510, GBJ15005-LITE GLASS PASSIVATED BRIDGE RECTIFIERS

GBJ1510 Description

LITE-ON SEMICONDUCTOR GBJ15005 thru GBJ1510 GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 15 Amperes FEA.

GBJ1510 Features

* Rating to 1000V PRV Ideal for printed circuit board Low forward voltage drop, high current capability. Reliable low cost construction utilizing molded plastic technique results in inexpensive product The plastic material has UL flammability classification 94V-0 UL Recognition File # E95060 MECHANICA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ1510, GBJ15005-LITE. Please refer to the document for exact specifications by model.

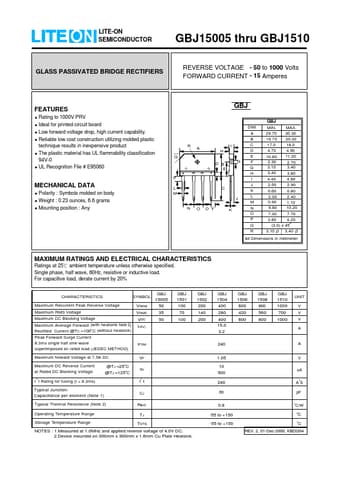

datasheet Preview Page 2

Datasheet Details

Part number
GBJ1510, GBJ15005-LITE
Manufacturer
LITE-ON
File Size
50.72 KB
Datasheet
GBJ15005-LITE-ON.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: GBJ1510, GBJ15005-LITE.
Please refer to the document for exact specifications by model.
