LTD-2404SW-P Datasheet - LITE-ON

LTD-2404SW-P LED Display

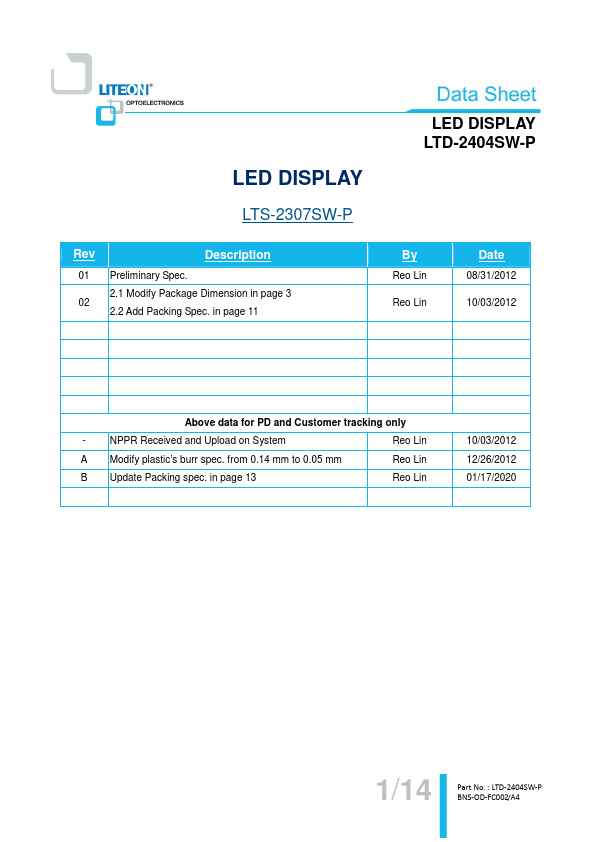

Preliminary Spec. 2.1 Modify Package Dimension in page 3 2.2 Add Packing Spec. in page 11 By Reo Lin Reo Lin Date 08/31/2012 10/03/2012 Above data for PD and Customer tracking only - NPPR Received and Upload on System Reo Lin A Modify plastic’s burr spec. from 0.14 mm to 0.05 mm Reo Lin B Up.

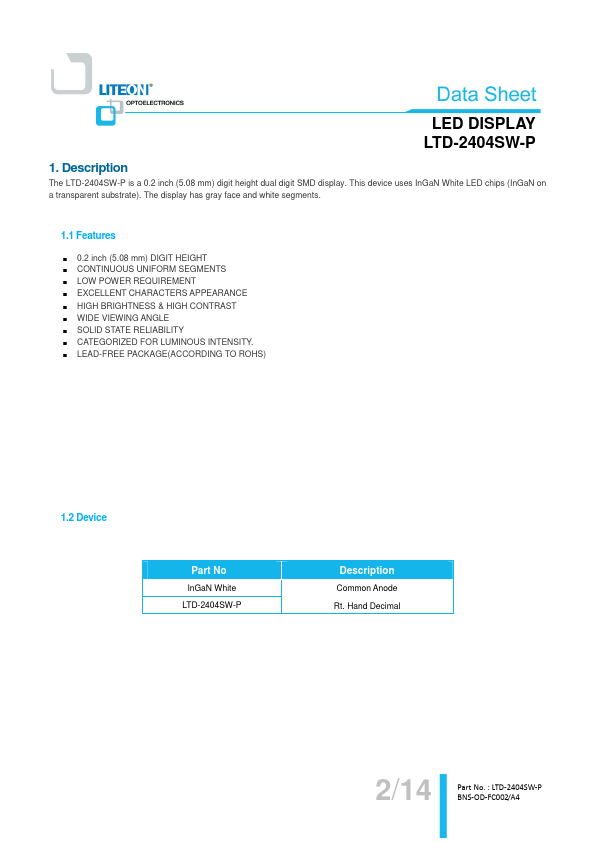

LTD-2404SW-P Features

* 0.2 inch (5.08 mm) DIGIT HEIGHT

* CONTINUOUS UNIFORM SEGMENTS

* LOW POWER REQUIREMENT

* EXCELLENT CHARACTERS APPEARANCE

* HIGH BRIGHTNESS & HIGH CONTRAST

* WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY

* CATEGORIZED FOR LUMINOUS INTENSITY.

* LEAD-FREE PACKAGE(ACC

LTD-2404SW-P Datasheet (450.80 KB)

Preview of LTD-2404SW-P PDF
LTD-2404SW-P Datasheet Preview Page 2 LTD-2404SW-P Datasheet Preview Page 3

Datasheet Details

Part number:

LTD-2404SW-P

Manufacturer:

LITE-ON

File Size:

450.80 KB

Description:

Led display.
