LTD-4826G Datasheet - LITE-ON

LTD-4826G LED Display

The LTD-4826G is a 0.4 inch (10.21 mm) digit height dual-digit display. This device uses GREEN LED chips (GaP epi on GaP substrate). The display has black face and white segments. DEVICE PART NO. GREEN LTD-4826G DESCRIPTION Common Anode Rt. Hand Decimal PART NO.: LTD-4826G BNS-OD-C131/A4 PAGE: .

LTD-4826G-LITEON.pdf

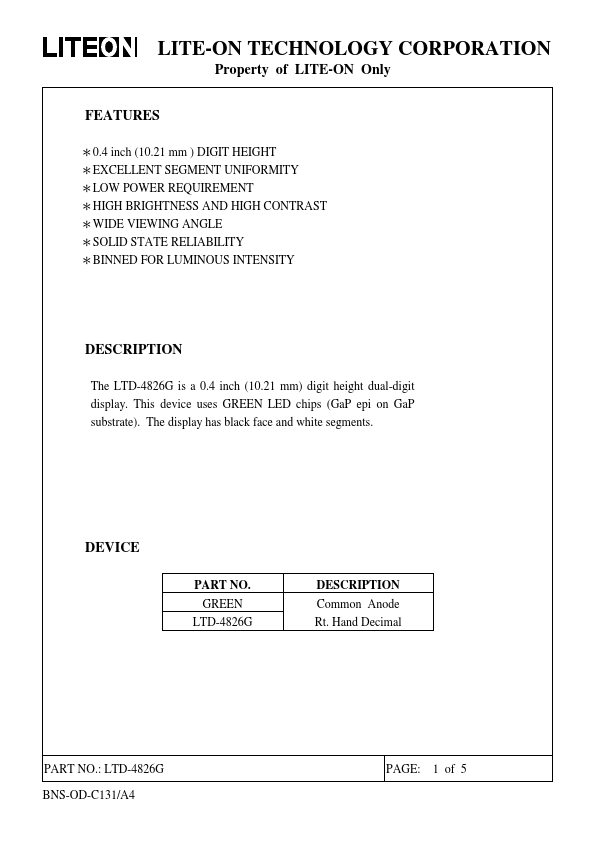

Preview of LTD-4826G PDF

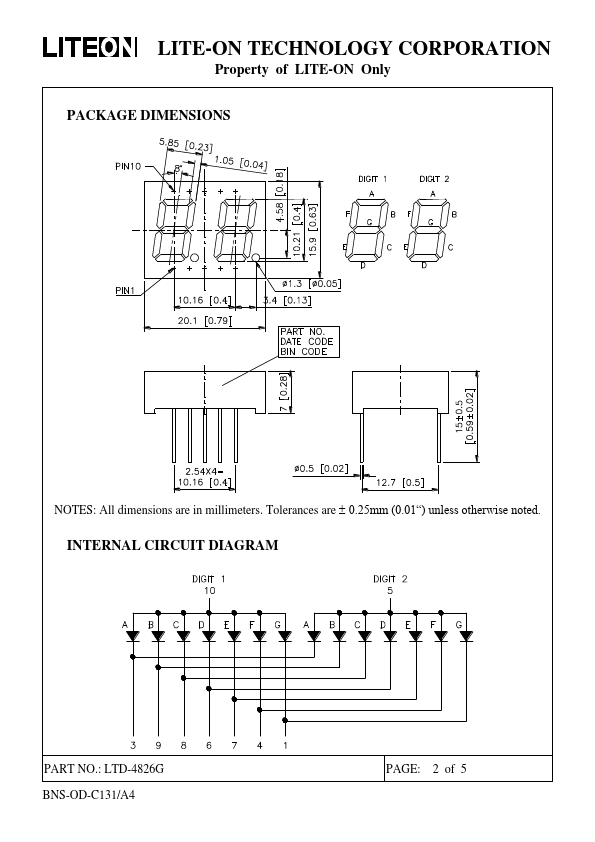

LTD-4826G Datasheet Preview Page 2 LTD-4826G Datasheet Preview Page 3

Datasheet Details

Part number:

LTD-4826G

Manufacturer:

LITE-ON

File Size:

374.52 KB

Description:

Led display.
