Datasheet Details
| Part number | LTP-1057AHR |
|---|---|
| Manufacturer | LITEON |
| File Size | 301.25 KB |
| Description | LED Display |
| Download | LTP-1057AHR Download (PDF) |
|
|
Overview: LED Display Product Data Sheet LTP-1057AHR Spec No. :DS-30-99-066 Effective Date: 01/20/2023 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.
Download the LTP-1057AHR datasheet PDF. This datasheet also includes the LTP-1057AHR-LITE variant, as both parts are published together in a single manufacturer document.
| Part number | LTP-1057AHR |
|---|---|
| Manufacturer | LITEON |
| File Size | 301.25 KB |
| Description | LED Display |
| Download | LTP-1057AHR Download (PDF) |
|
|
|

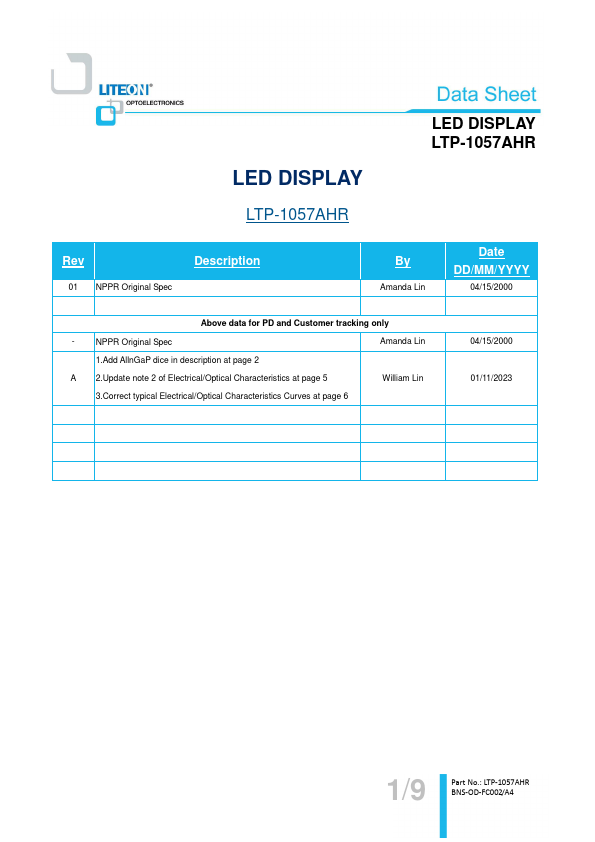

By Amanda Lin Date DD/MM/YYYY 04/15/2000 Above data for PD and Customer tracking only - NPPR Original Spec Amanda Lin 1.Add AllnGaP dice in description at page 2 A 2.Update note 2 of Electrical/Optical Characteristics at page 5 William Lin 3.Correct typical Electrical/Optical Characteristics Curves at page 6 04/15/2000 01/11/2023 1/9 Part No.: LTP-1057AHR BNS-OD-FC002/A4 LED DISPLAY LTP-1057AHR 1.

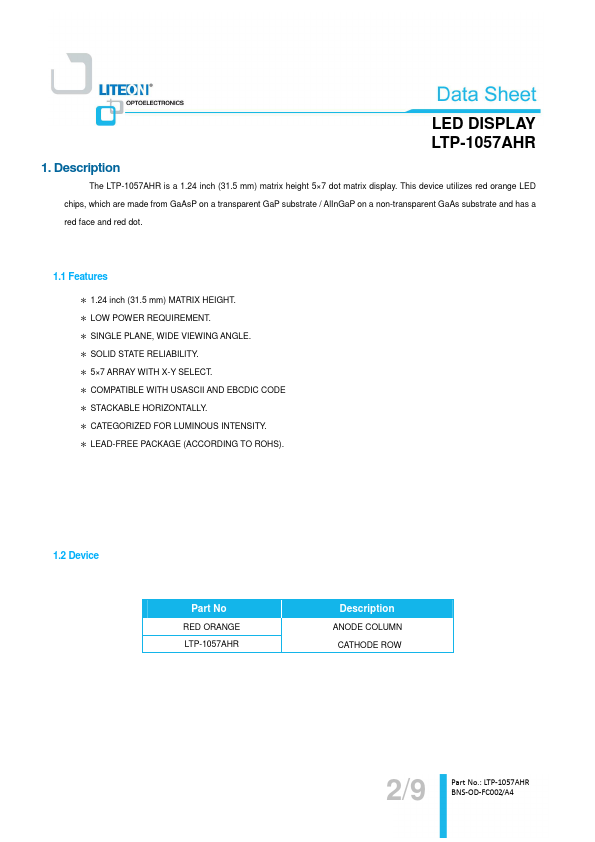

Description The LTP-1057AHR is a 1.24 inch (31.5 mm) matrix height 5×7 dot matrix display.
This device utilizes red orange LED chips, which are made from GaAsP on a transparent GaP substrate / AlInGaP on a non-transparent GaAs substrate and has a red face and red dot.
