LTP-14858AA Datasheet - LITE-ON

LTP-14858AA LED Display

The LTP-14858AA is a 1.4 inch (35.76 mm) height dot matrix display. This device is multicolor applicable display, which has gray face and white dot color. The red orange LED chips are made from GaAsP on a transparent GaP substrate. The green LED chips are made from GaP on a transparent GaP substrate.

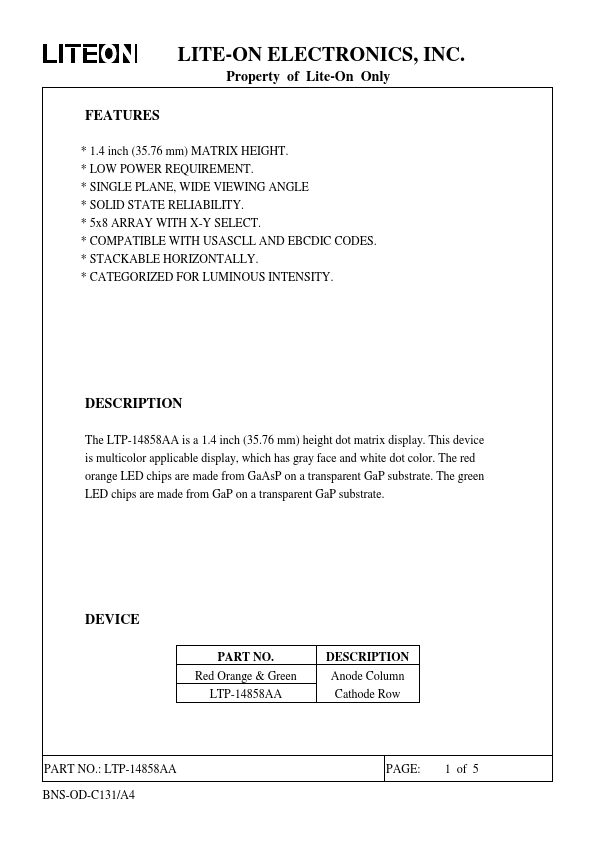

LTP-14858AA Features

* 1.4 inch (35.76 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x8 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRI

LTP-14858AA Datasheet (409.84 KB)

LTP-14858AA Datasheet Preview — Preview of LTP-14858AA PDF

Datasheet Details

Part number:

LTP-14858AA

Manufacturer:

LITE-ON

File Size:

409.84 KB

Description:

Led display.
