LTP-1557AHR Datasheet - LITE-ON

LTP-1557AHR LED Display

The LTP-1557AHR is a 1.2 inch (30.42 mm) matrix height 5x7 dot matrix display. This device utilizes high efficiency red LED chips, which are made from GaAsP on a GaP substrate, with a red face and red dot color. DEVICE PART NO. Hi-Eff. Red LTP-1557AHR DESCRIPTION Cathode Column Anode Row PART NO.

LTP-1557AHR Features

* 1.2 inch (30.42 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x7 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIP

LTP-1557AHR Datasheet (427.37 KB)

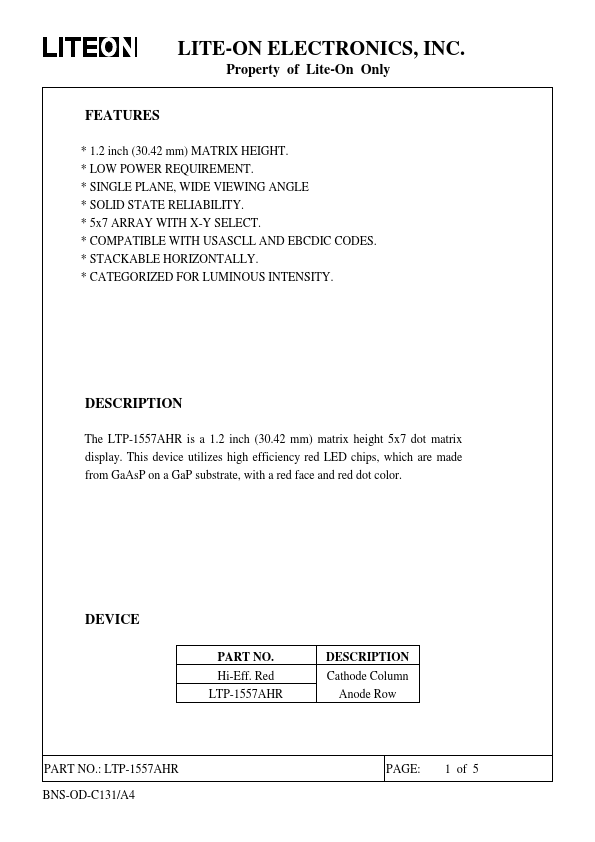

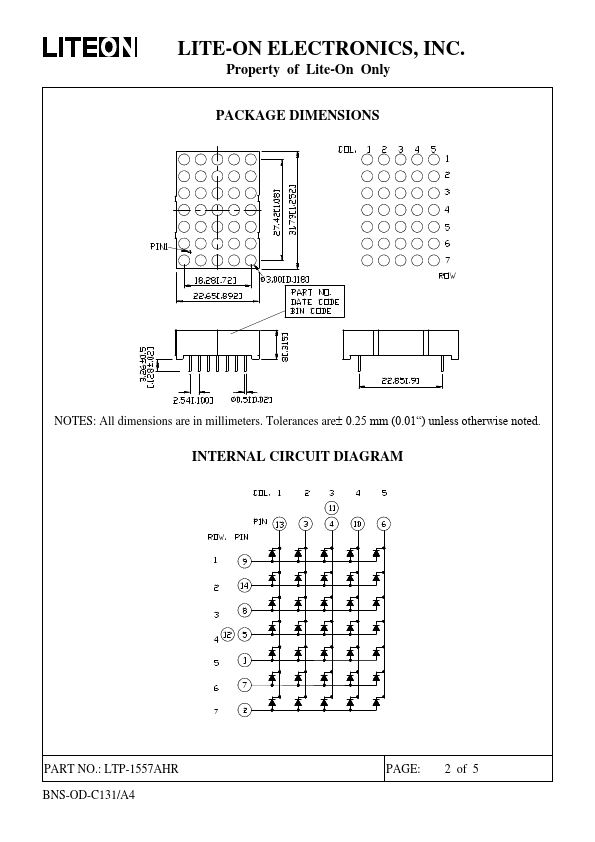

LTP-1557AHR Datasheet Preview — Preview of LTP-1557AHR PDF

Datasheet Details

Part number:

LTP-1557AHR

Manufacturer:

LITE-ON

File Size:

427.37 KB

Description:

Led display.
