LTP-2058AKD Datasheet - LITE-ON

LTP-2058AKD LED Display

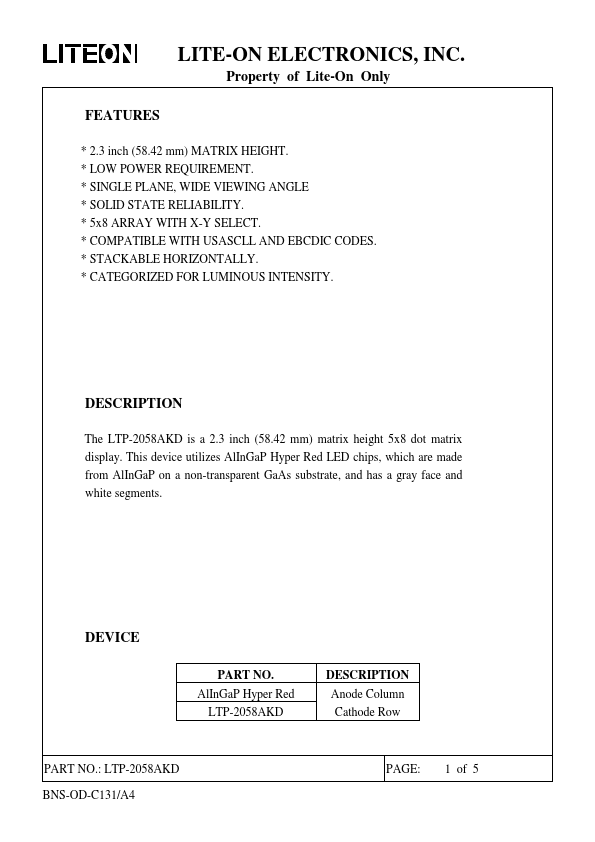

The LTP-2058AKD is a 2.3 inch (58.42 mm) matrix height 5x8 dot matrix display. This device utilizes AlInGaP Hyper Red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlInGaP Hyper Red LTP-2058AKD DESCRIPTION Anode.

LTP-2058AKD Features

* 2.3 inch (58.42 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x8 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIP

LTP-2058AKD Datasheet (428.28 KB)

LTP-2058AKD Datasheet Preview — Preview of LTP-2058AKD PDF

Datasheet Details

Part number:

LTP-2058AKD

Manufacturer:

LITE-ON

File Size:

428.28 KB

Description:

Led display.
