LTP-22157M Datasheet - LITE-ON

LTP-22157M LED Display

The LTP-22157M is a 2.2 inch (57.22 mm) matrix height 5×7 dot matrix display. This device utilizes red orange and green LED chips, the green LED chips are made from GaP on GaP substrate , the red orange LED chips are made from GaAsP on GaP substrate, and has a gray face and white dots. DEVICE PART.

LTP-22157M-LITEON.pdf

Preview of LTP-22157M PDF

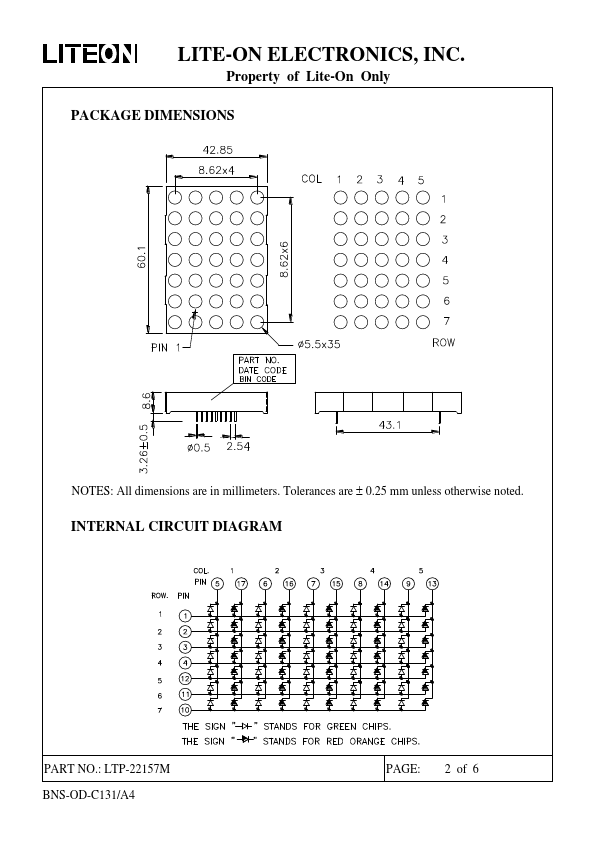

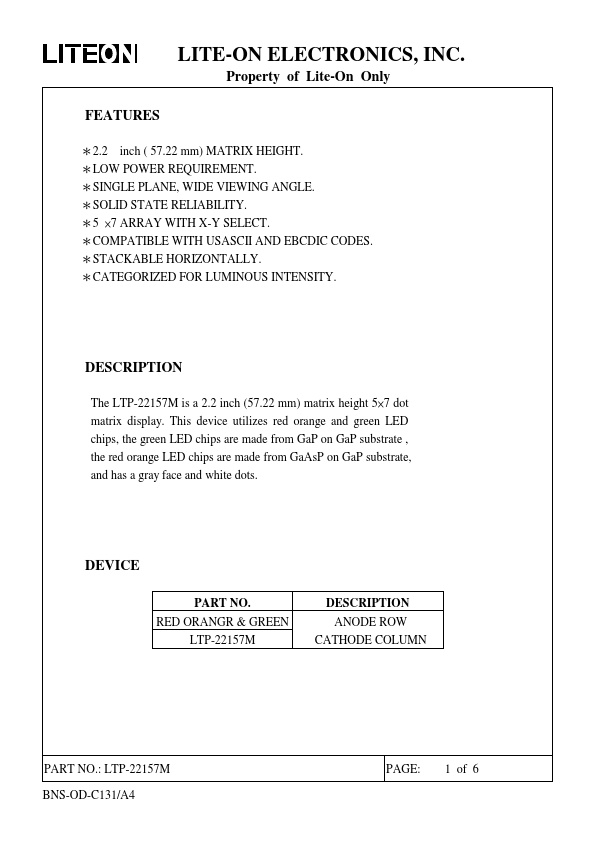

LTP-22157M Datasheet Preview Page 2 LTP-22157M Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-22157M

Manufacturer:

LITE-ON

File Size:

399.43 KB

Description:

Led display.
