LTP-2844A3-NB Datasheet - LITE-ON

LTP-2844A3-NB LED Display

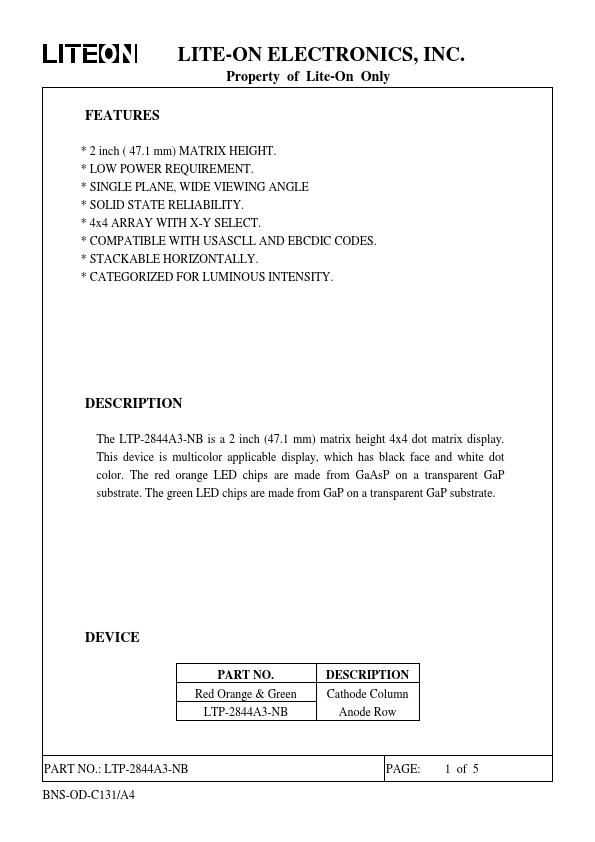

The LTP-2844A3-NB is a 2 inch (47.1 mm) matrix height 4x4 dot matrix display. This device is multicolor applicable display, which has black face and white dot color. The red orange LED chips are made from GaAsP on a transparent GaP substrate. The green LED chips are made from GaP on a transparent Ga.

LTP-2844A3-NB Features

* 2 inch ( 47.1 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 4x4 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPTI

LTP-2844A3-NB-LITEON.pdf

LTP-2844A3-NB Datasheet Preview — Preview of LTP-2844A3-NB PDF

Datasheet Details

Part number:

LTP-2844A3-NB

Manufacturer:

LITE-ON

File Size:

359.69 KB

Description:

Led display.
