LTS-10804JD Datasheet - LITE-ON

LTS-10804JD LED Display

The LTS-10804JD is a 1.0 inch (25.4 mm) digit height single digit low current seven-segment display. This device uses AS-AlInGaP Hyper Red LED chips (AlInGaP epi on GaAs substrate). The display has a black face and white segments. DEVICE PART NO. AlInGaP Hyper RED LTS-10804JD DESCRIPTION COMMON A.

LTS-10804JD Datasheet (337.89 KB)

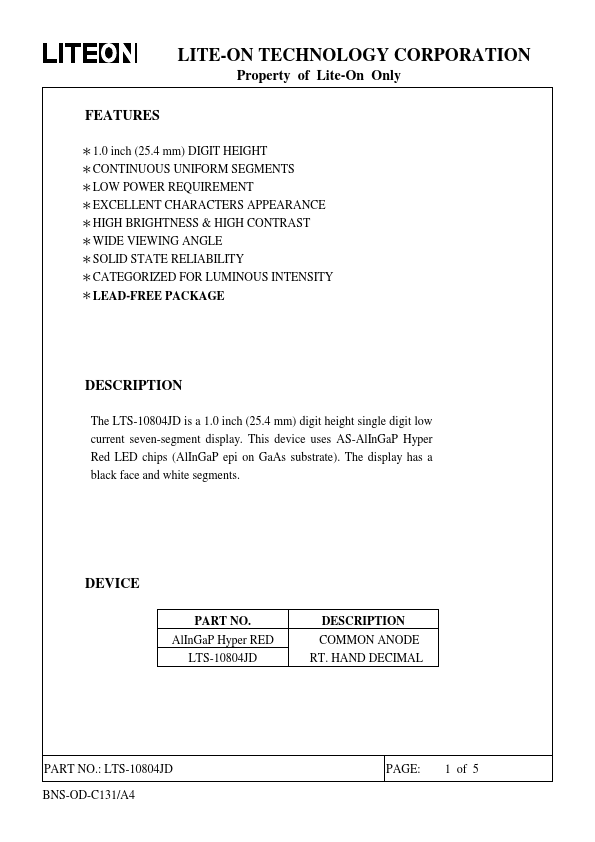

Preview of LTS-10804JD PDF

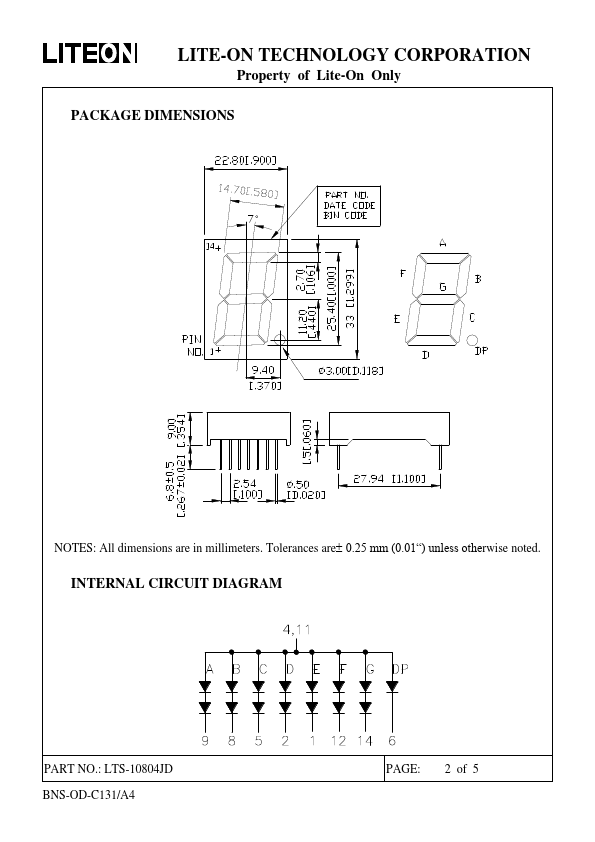

LTS-10804JD Datasheet Preview Page 2 LTS-10804JD Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-10804JD

Manufacturer:

LITE-ON

File Size:

337.89 KB

Description:

Led display.
