LTS-547AE Datasheet - LITE-ON

LTS-547AE LED Display

The LTS-547AE is a 0.52 inch (13.2 mm) digit height single digit seven-segment display. This device utilizes red orange LED chips, which are made from GaAsP on a transparent GaP substrate, and has a gray face and white segments. DEVICE PART NO. Red Orange LTS-547AE DESCRIPTION Common Cathode Rt. .

LTS-547AE Datasheet (353.95 KB)

Preview of LTS-547AE PDF

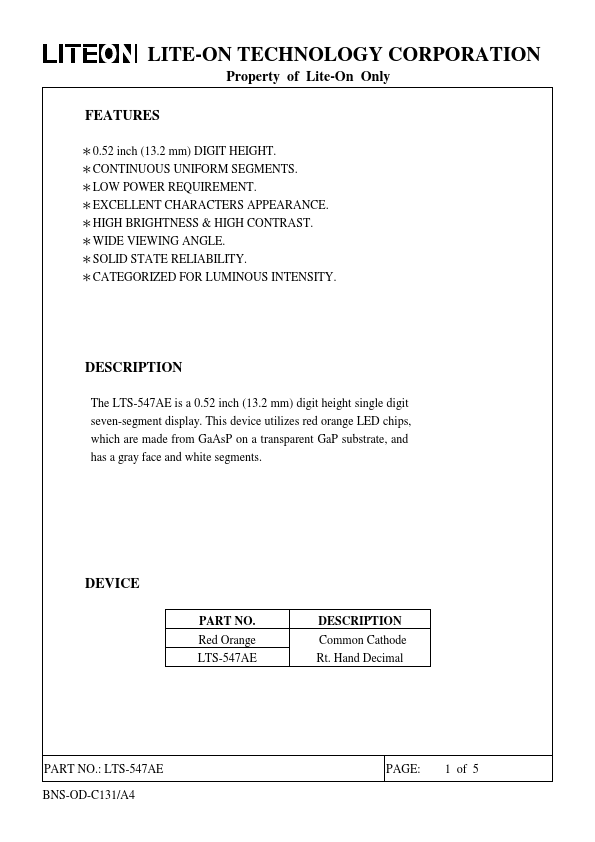

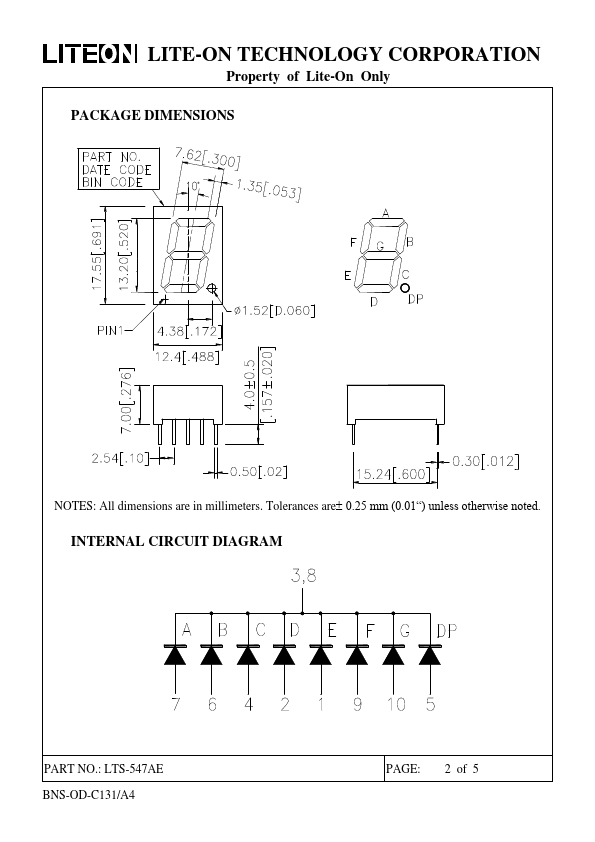

LTS-547AE Datasheet Preview Page 2 LTS-547AE Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-547AE

Manufacturer:

LITE-ON

File Size:

353.95 KB

Description:

Led display.
