LTS-5503AJE-H1 Datasheet - LITE-ON

LTS-5503AJE-H1 LED Display

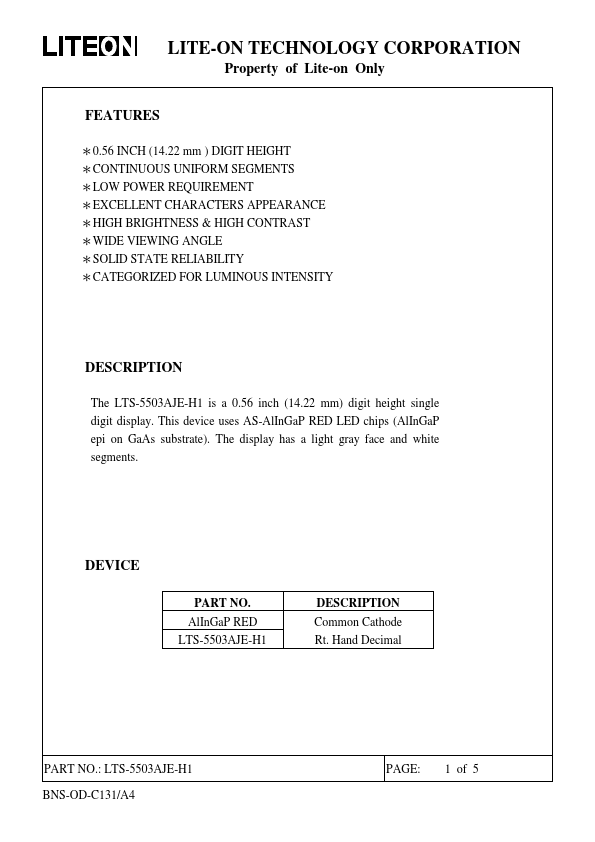

The LTS-5503AJE-H1 is a 0.56 inch (14.22 mm) digit height single digit display. This device uses AS-AlInGaP RED LED chips (AlInGaP epi on GaAs substrate). The display has a light gray face and white segments. DEVICE PART NO. AlInGaP RED LTS-5503AJE-H1 DESCRIPTION Common Cathode Rt. Hand Decimal .

LTS-5503AJE-H1 Datasheet (336.20 KB)

Preview of LTS-5503AJE-H1 PDF

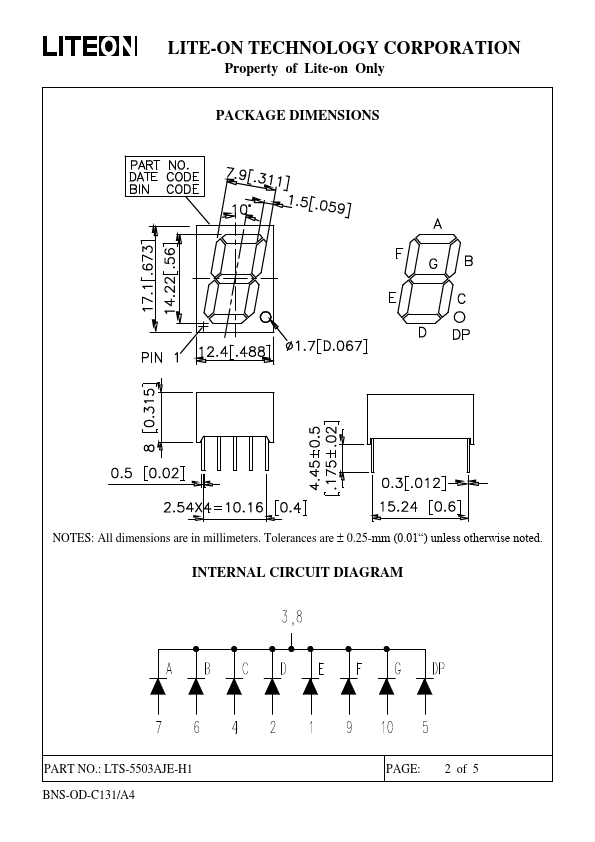

LTS-5503AJE-H1 Datasheet Preview Page 2 LTS-5503AJE-H1 Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-5503AJE-H1

Manufacturer:

LITE-ON

File Size:

336.20 KB

Description:

Led display.
