LTS-5703AJS Datasheet - LITE-ON

LTS-5703AJS LED Display

The LTS-5703AJS is a 0.56inch (14.22mm) height digit display. The device utilizes AlInGaP yellow LED chips which are made from AlInGaP on a non-transparent GaAs substrate, and have light gray face and white segments. This low current seven-segment display is designed to perform under low power consu.

LTS-5703AJS Datasheet (354.20 KB)

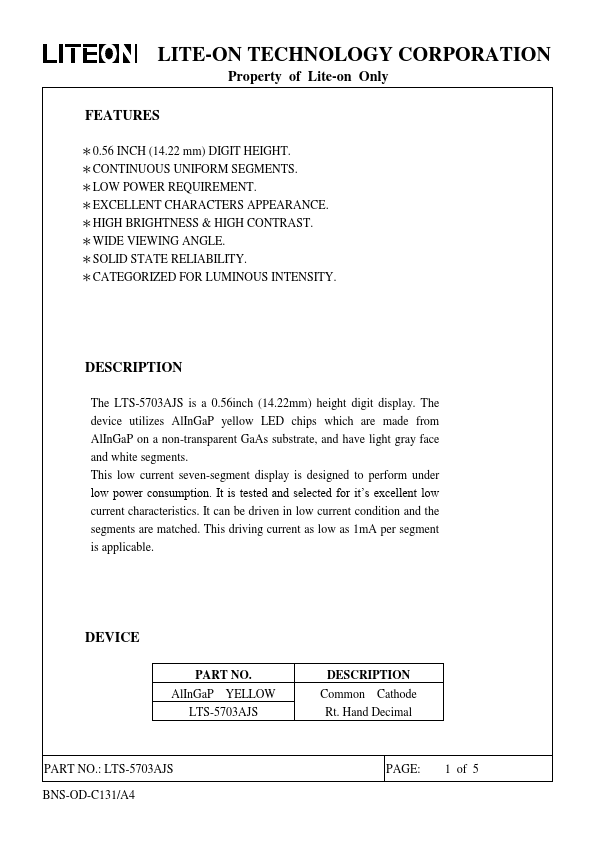

Preview of LTS-5703AJS PDF

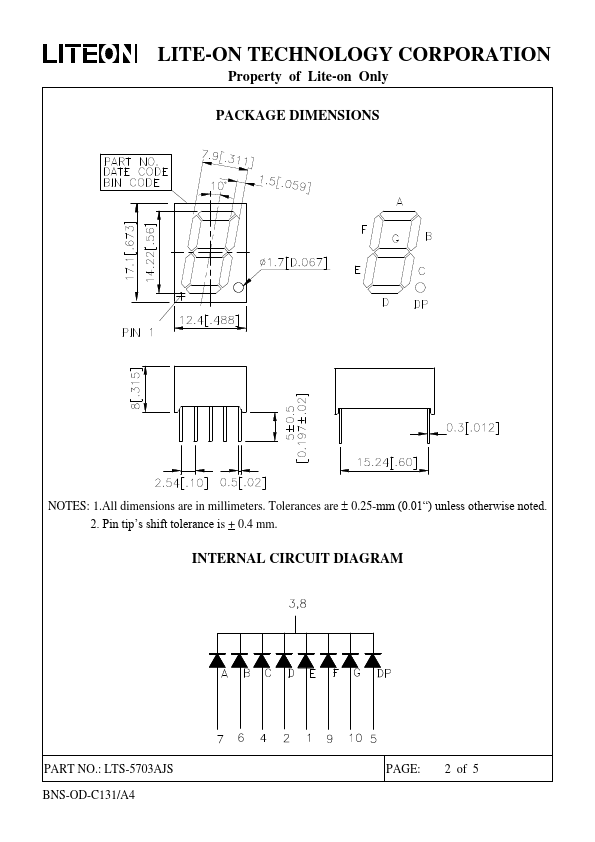

LTS-5703AJS Datasheet Preview Page 2 LTS-5703AJS Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-5703AJS

Manufacturer:

LITE-ON

File Size:

354.20 KB

Description:

Led display.
