LTS-5825CTB-PR Datasheet - LITE-ON

LTS-5825CTB-PR LED Display

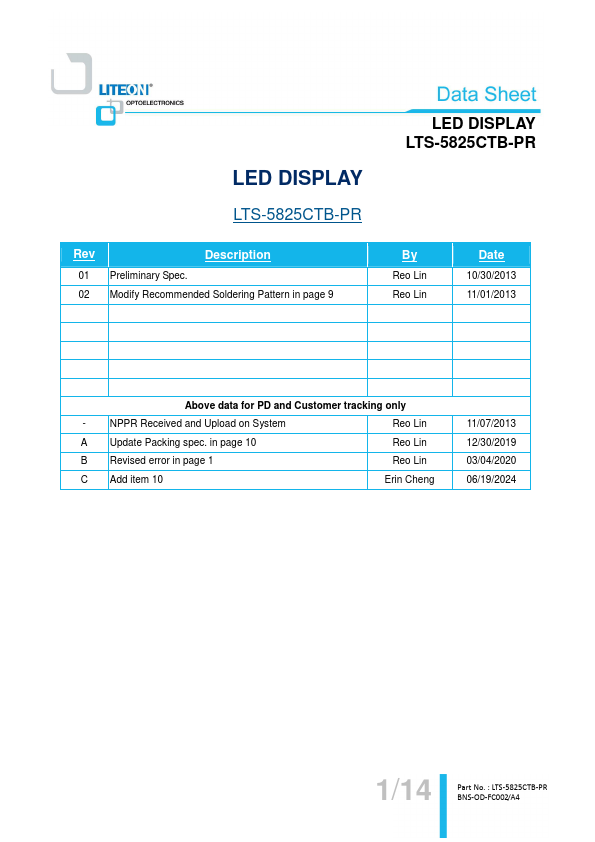

01 Preliminary Spec. 02 Modify Recommended Soldering Pattern in page 9 By Reo Lin Reo Lin Date 10/30/2013 11/01/2013 Above data for PD and Customer tracking only - NPPR Received and Upload on System Reo Lin A Update Packing spec. in page 10 Reo Lin B Revised error in page 1 Reo Lin C Add .

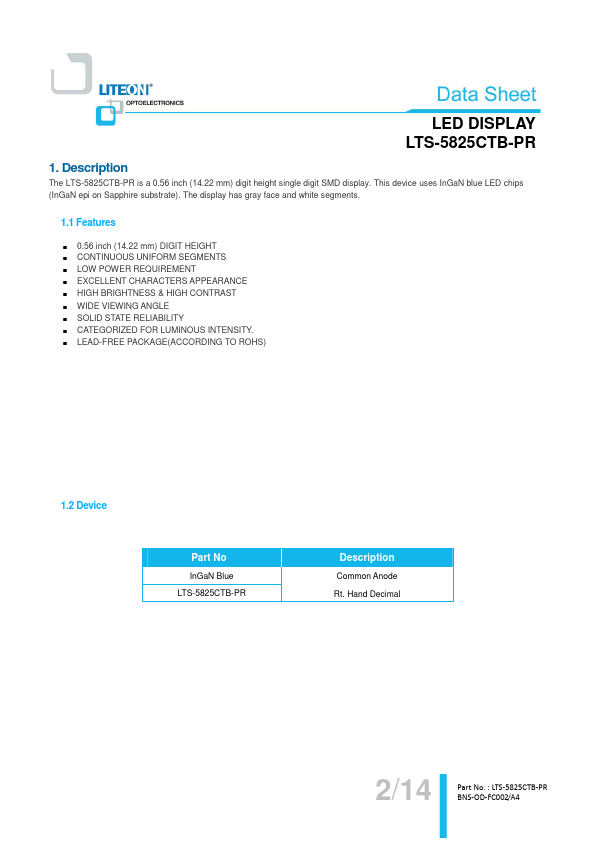

LTS-5825CTB-PR Features

* 0.56 inch (14.22 mm) DIGIT HEIGHT

* CONTINUOUS UNIFORM SEGMENTS

* LOW POWER REQUIREMENT

* EXCELLENT CHARACTERS APPEARANCE

* HIGH BRIGHTNESS & HIGH CONTRAST

* WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY

* CATEGORIZED FOR LUMINOUS INTENSITY.

* LEAD-FREE PACKAGE(A

LTS-5825CTB-PR Datasheet (420.13 KB)

LTS-5825CTB-PR Datasheet Preview — Preview of LTS-5825CTB-PR PDF

Datasheet Details

Part number:

LTS-5825CTB-PR

Manufacturer:

LITE-ON

File Size:

420.13 KB

Description:

Led display.
