LTST-C19HE1WT - SMD LED

Download the LTST-C19HE1WT datasheet PDF. This datasheet also includes the LTST-C19HE1WT-LITE variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTST-C19HE1WT-LITE-ON.pdf) that lists specifications for multiple related part numbers.

Overview

SMD LED Product Data Sheet LTST-C19HE1WT Spec No.

:DS22-2008-0044 Effective Date: 08/13/2022 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp.

/ Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.

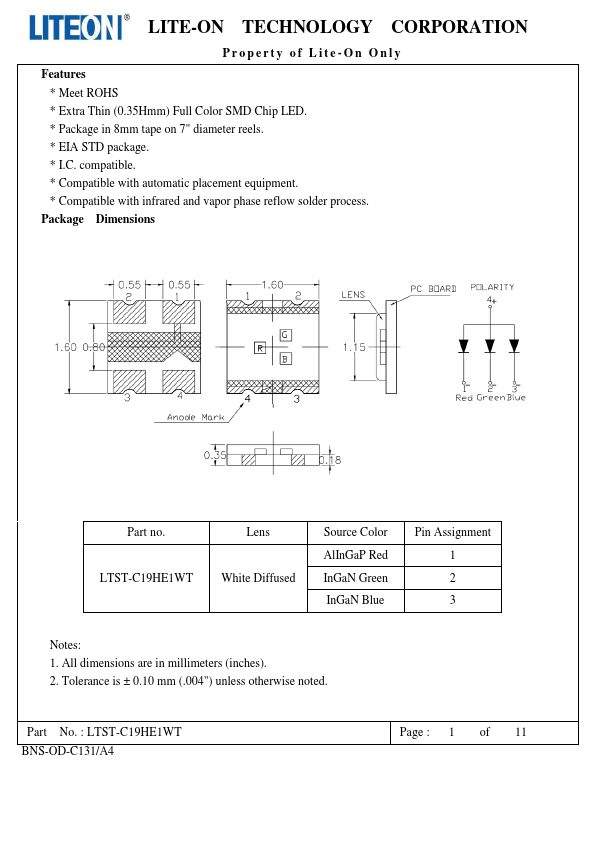

Key Features

  • Meet ROHS.
  • Extra Thin (0.35Hmm) Full Color SMD Chip LED.
  • Package in 8mm tape on 7" diameter reels.
  • EIA STD package.
  • I. C. compatible.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process. Package Dimensions Part no. LTST-C19HE1WT Lens White Diffused Source Color AlInGaP Red InGaN Green InGaN Blue Pin Assignment 1 2 3 Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm.
