LTV-356T - Photocoupler

Download the LTV-356T datasheet PDF (LTV-356T-LITE included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for photocoupler.

Description

1.1

Features

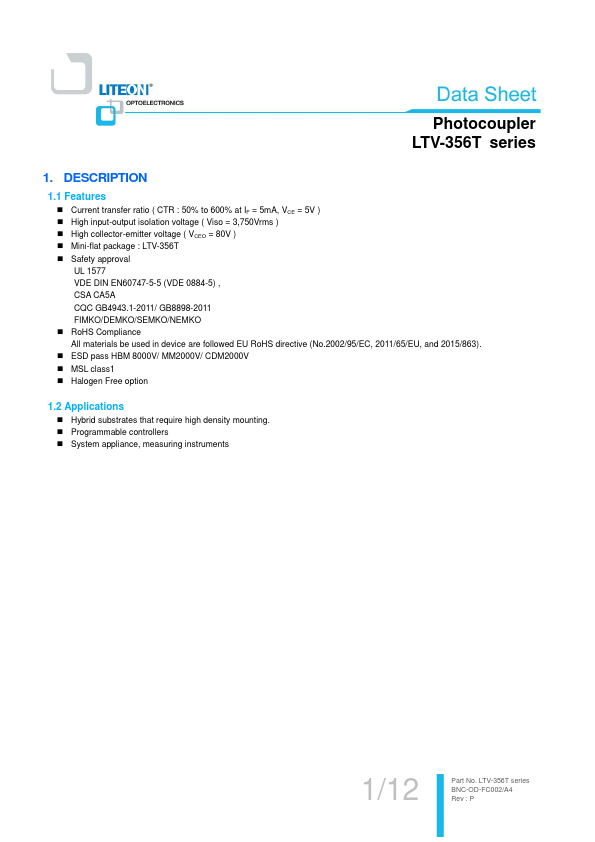

  • Current transfer ratio ( CTR : 50% to 600% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 3,750Vrms ) High collector-emitter voltage ( VCEO = 80V ) Mini-flat package : LTV-356T Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) , CSA CA5A CQC GB4943.1-2011/ GB8898-2011 FIMKO/DEMKO/SEMKO/NEMKO RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC, 2011/65/EU, and 2015/863). ESD pass HBM 8000V/ MM2000V/ CDM2000V MSL class1 Halogen.
