LTV-8141S Photocoupler

Tape wide Pitch of sprocket holes Distance of compartment Distance of compartment to compartment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 16  0.3 ( .63 ) 4  0.1 ( .15 ) 7.5  0.1 ( .295 ) 2  0.1 ( .079 ) 12  0.1 ( .472 ) Part No.: LTV-8141 / 8241 / 8441 ( M, S, S-TA1, S-TA, S-TP ) Seri.

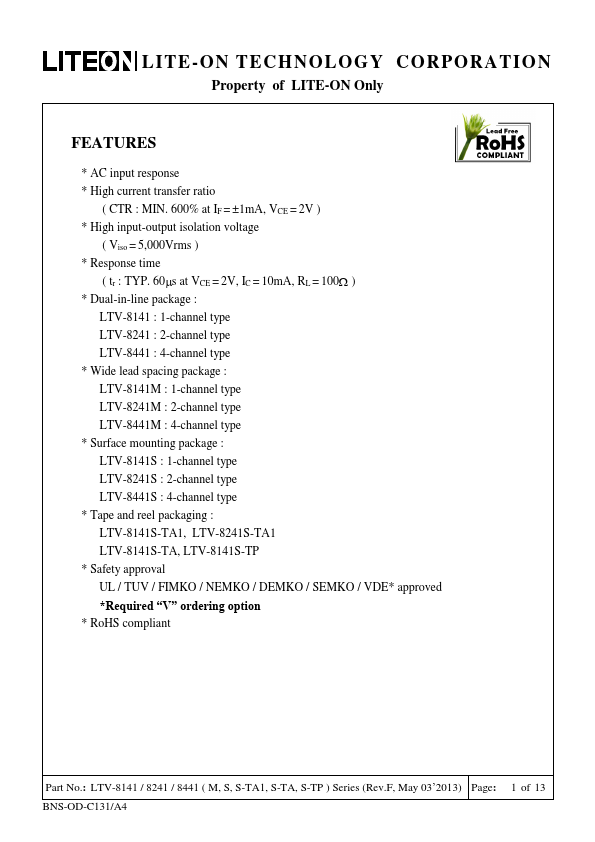

LTV-8141S Features

* AC input response

* High current transfer ratio ( CTR : MIN. 600% at IF = ±1mA, VCE = 2V )

* High input-output isolation voltage ( Viso = 5,000Vrms )

* Response time ( tr : TYP. 60s at VCE = 2V, IC = 10mA, RL = 100 )

* Dual-in-line package : LTV-8141 : 1-channel type LTV-8241
