LTV-M501 Photocoupler

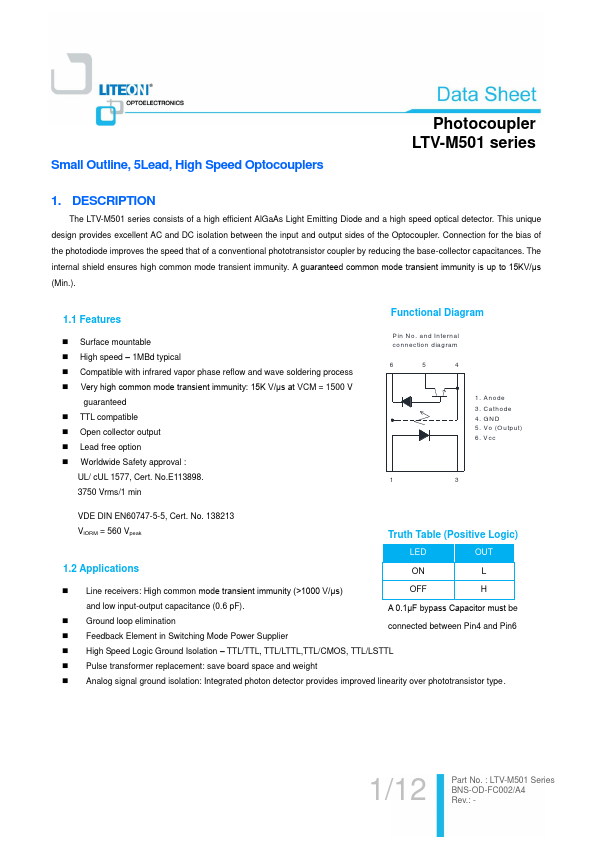

The LTV-M501 series consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector. This unique design provides excellent AC and DC isolation between the input and output sides of the Optocoupler. Connection for the bias of the photodiode improves the speed that of a conv.

LTV-M501 Features

* Surface mountable

* High speed

* 1MBd typical

* Compatible with infrared vapor phase reflow and wave soldering process

* Very high common mode transient immunity: 15K V/μs at VCM = 1500 V guaranteed

* TTL compatible

* Open collector output

* Lead free option

LTV-M501 Datasheet (491.91 KB)
