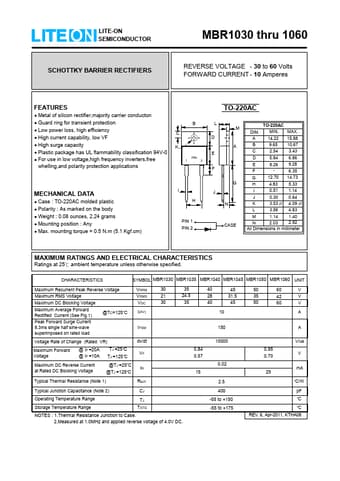

LITE-ON SEMICONDUCTOR
SCHOTTKY BARRIER RECTIFIERS
MBR1030 thru 1060
REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 10 Amperes
FEATURES
Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whelling,and polarity protection applications
MECHANICAL DATA
Case : TO-220AC molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N.m (5.1 Kgf.cm)
B C K
PIN 12
I H
PIN 1 PIN 2
TO-220AC
L M
TO-220AC
DIM. MIN. MAX.
D A 14.22 15.88
A B 9.65 10.67
E C 2.54 3.43 D 5.84 6.86
E 8.26 9.
