P4KE68 - GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS

Download the P4KE68 datasheet PDF. This datasheet also covers the P4KE6.8-LITE variant, as both devices belong to the same glass passivated unidirectional and bidirectional transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated chip Low leakage Uni and Bidirectional unit Excellent clamping capability The plastic material has U/L recognition 94V-O Fast response time.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4KE6.8-LITE-ON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4KE68
Manufacturer LITEON
File Size 56.77 KB
Description GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
Datasheet download datasheet P4KE68 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4KE68 Transient Voltage Suppressor Diodes Diotec
P4KE68 400 Watt Transient Voltage Suppressor Microsemi
P4KE68 Transient Voltage Suppressors HITANO
P4KE68 400W TRANSIENT VOLTAGE SUPPRESSOR Won-Top Electronics
P4KE68 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR LRC

Other Datasheets by LITEON

Part Number Description
P4KE68A GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
P4KE68C GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
P4KE68CA GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
P4KE6.8 GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS
P4KE6.8A GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

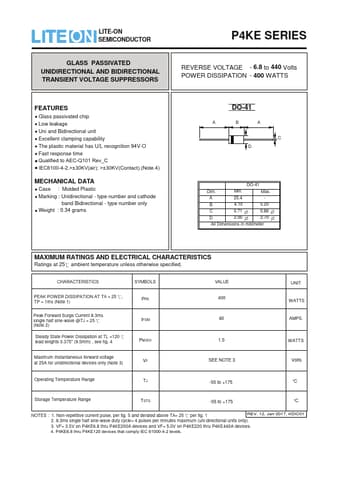

LITE-ON SEMICONDUCTOR GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS P4KE SERIES REVERSE VOLTAGE - 6.8 to 440 Volts POWER DISSIPATION - 400 WATTS FEATURES Glass passivated chip Low leakage Uni and Bidirectional unit Excellent clamping capability The plastic material has U/L recognition 94V-O Fast response time MECHANICAL DATA Case : Molded Plastic Marking : Unidirectional - type number and cathode band Bidirectional - type number only Weight : 0.34 grams DO-41 A BA C D DO-41 Dim. Min. Max. A 25.4 B 4.10 5.20 C 0.71 0.86 D 2.00 2.70 All Dimensions in millimeter MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
